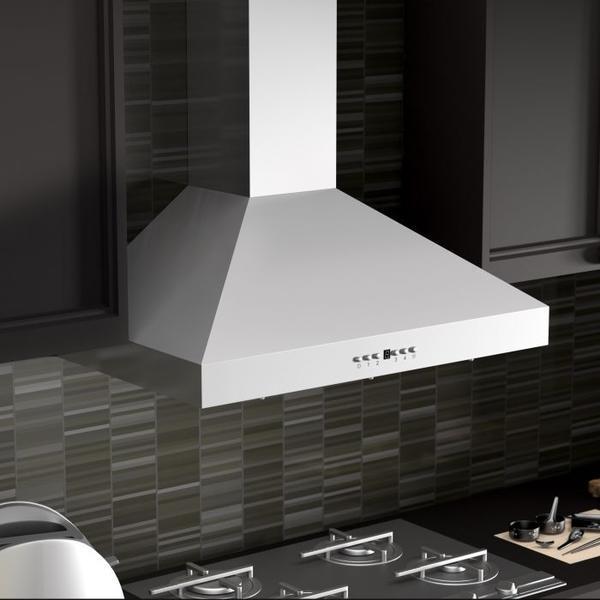

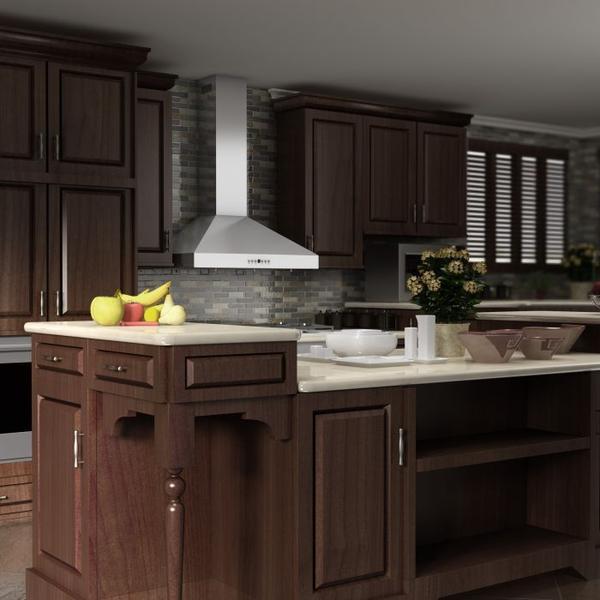

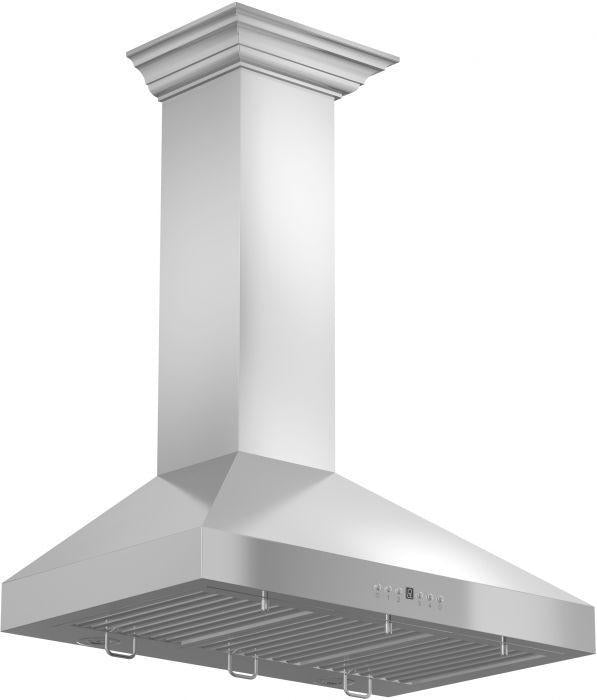

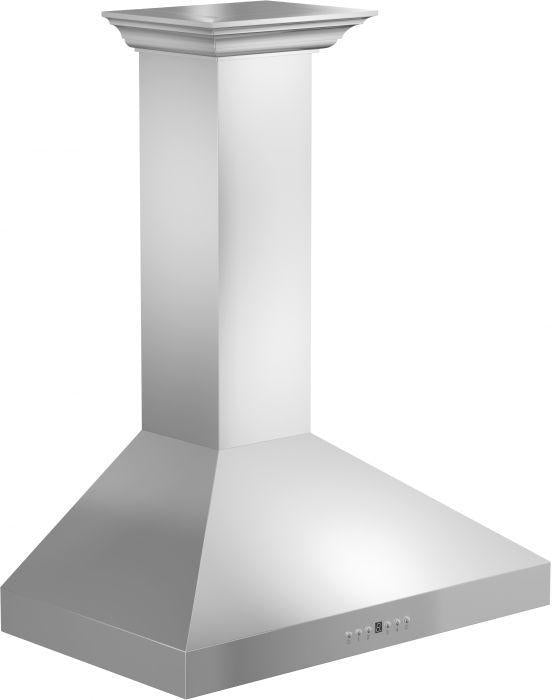

The ZLINE KL3CRN-48 is a 48-inch wall mount range hood designed for efficient ventilation and modern kitchen installation. Constructed from durable 430-grade stainless steel, this range hood features a crown molding design and a high-performance 4-speed motor delivering up to 400 CFM airflow.

This model supports both ducted and ductless operation (charcoal filters required for recirculation, sold separately). It includes dishwasher-safe stainless steel baffle filters, built-in LED lighting, and an LCD control panel with timer and delayed shutoff functionality.

The hood comes with two telescoping chimney pieces, allowing compatibility with standard ceiling heights between 8 and 9 feet. Optional short kits and extension kits are available for ceiling height adjustments. Designed for indoor use, this unit is ETL certified and operates on 110V/60Hz power.

Key Features:

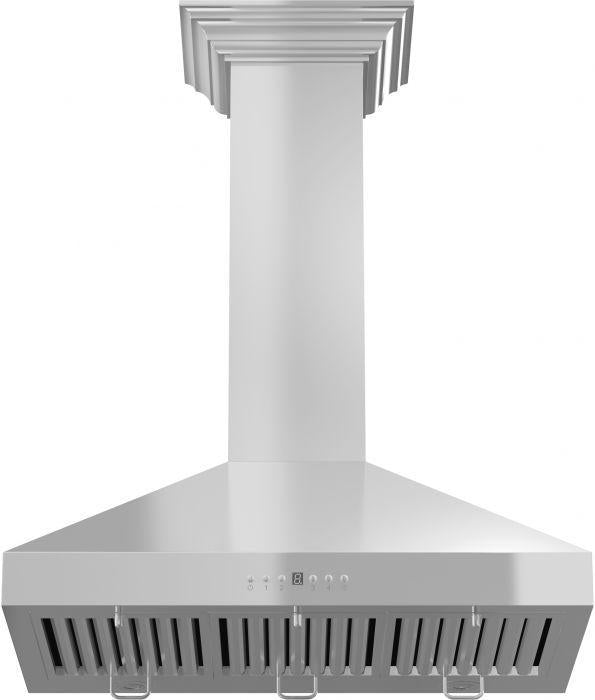

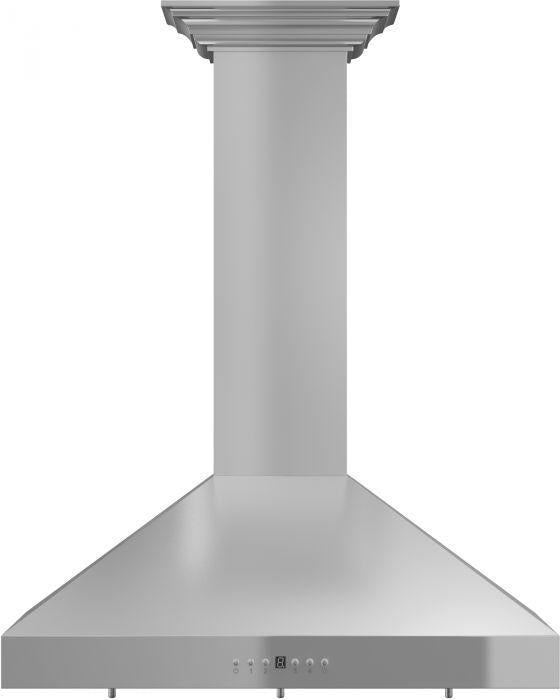

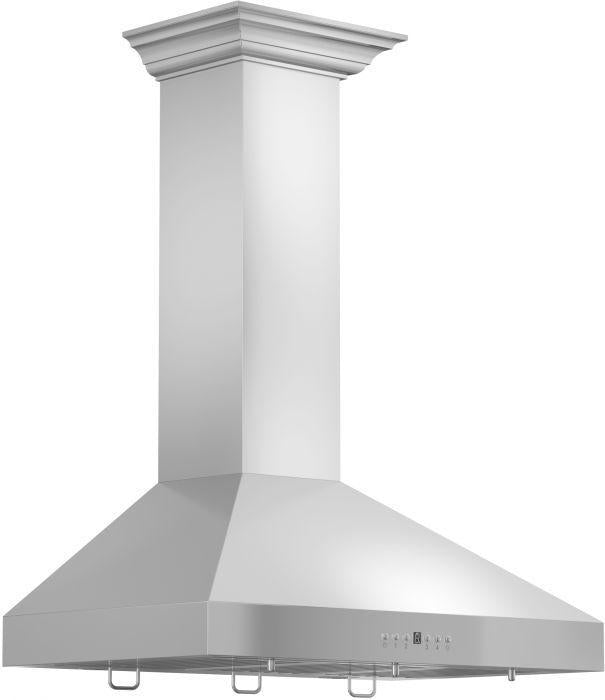

• 48-inch wall mount range hood in stainless steel with included crown molding

• Convertible ventilation (ducted or ductless with optional CF1 charcoal filters)

• High-performance 4-speed motor with airflow up to 400 CFM

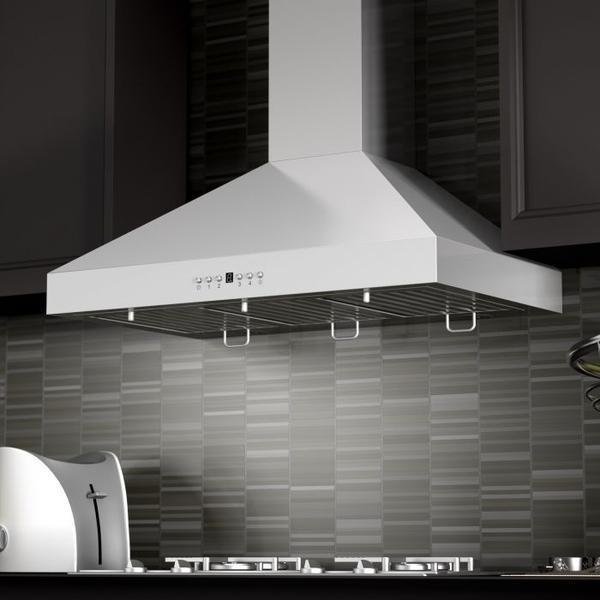

• Dishwasher-safe stainless steel baffle filters

• Built-in LED lighting for improved visibility

• LCD control panel with timer and delayed auto shutoff

• Telescoping chimney fits 8–9 ft ceilings (extensions available)

• Quiet operation with noise levels ranging from 20 to 41 dB

• 6-inch duct outlet with backdraft damper included

• ETL certified for safety and performance

Specifications

• Brand: ZLINE Kitchen and Bath

• Model: KL3CRN-48

• Mount Type: Wall Mount

• Material: 430 Stainless Steel

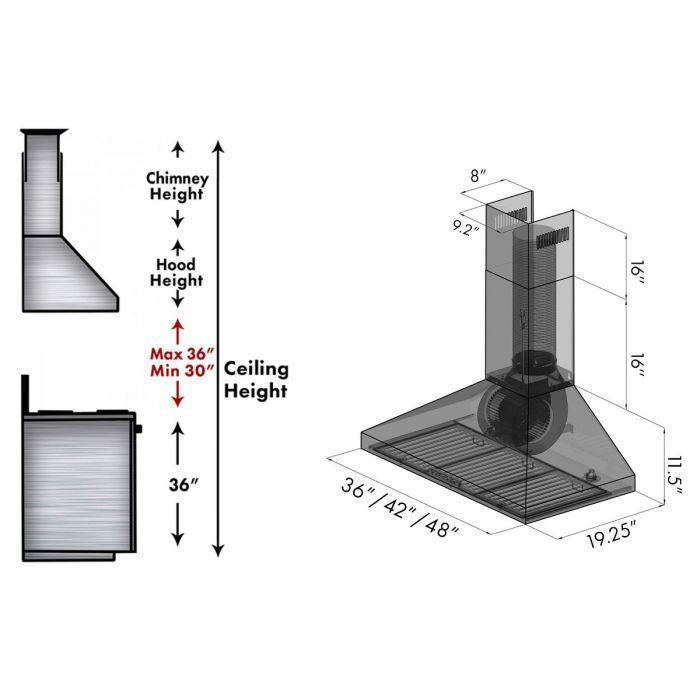

• Dimensions: 48" W x 19.25" D x 11.5" H

• Airflow: 120 / 240 / 320 / 400 CFM

• Speeds: 4

• Lighting: 2 LED Lights (3W each)

• Noise Level: 20–41 dB

• Voltage: 110V / 60Hz

• Vent Size: 6" Outlet

• Filters: Stainless Steel Baffle (Dishwasher Safe)

• Warranty: 3-Year Parts Warranty

• Certification: ETL Listed

Additional Information

• Indoor use only (not certified for outdoor installation)

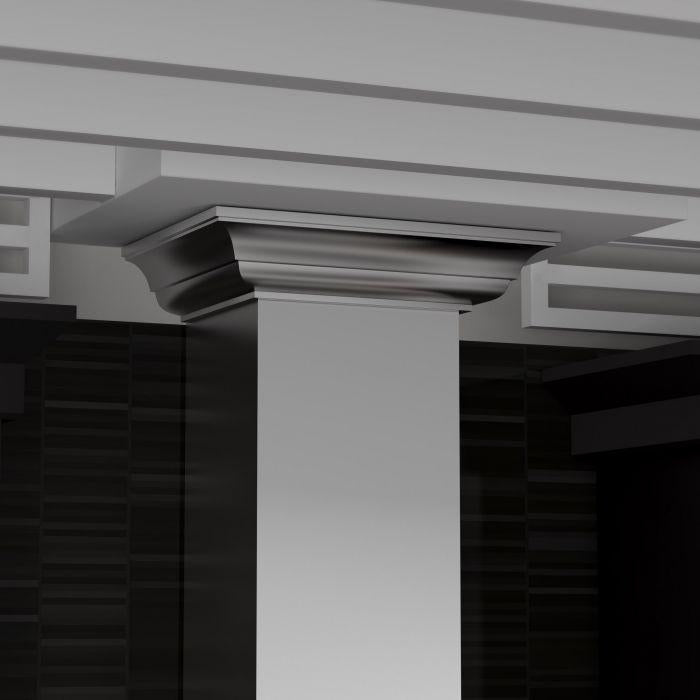

• Crown molding included

• Charcoal filters required for ductless mode (sold separately)

• Compatible ceiling heights:

  • < 8 ft: Short kit required

  • 8–9 ft: Standard installation

  • 9–12 ft: Extension kits required
