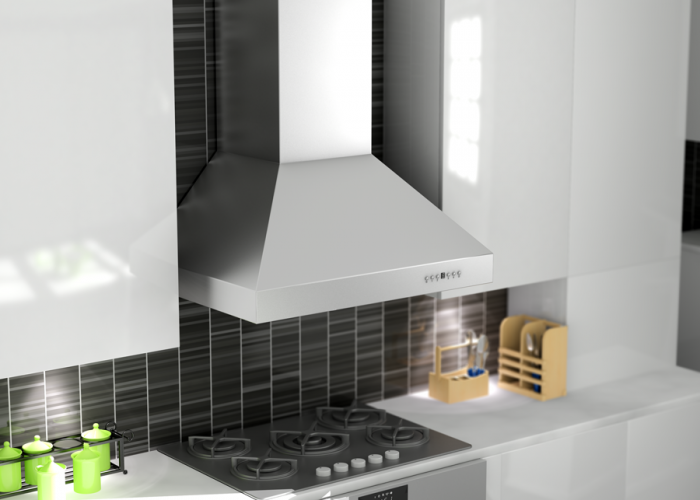

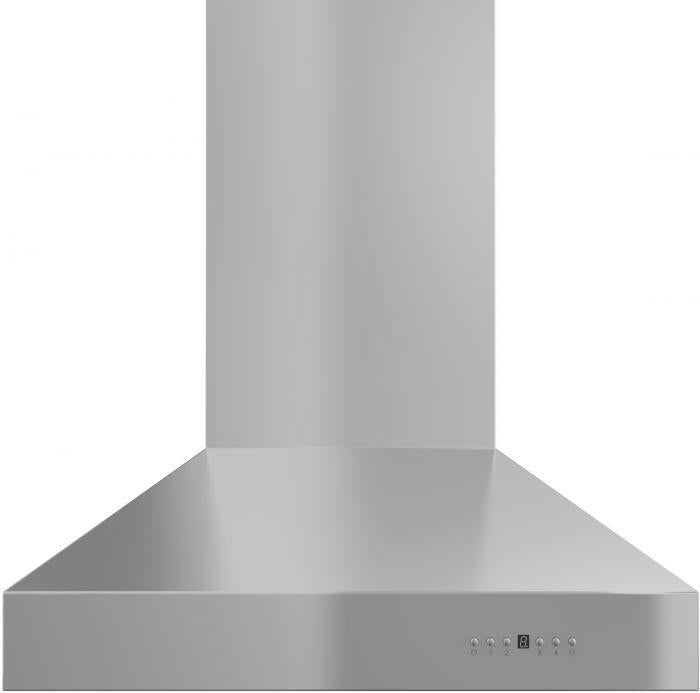

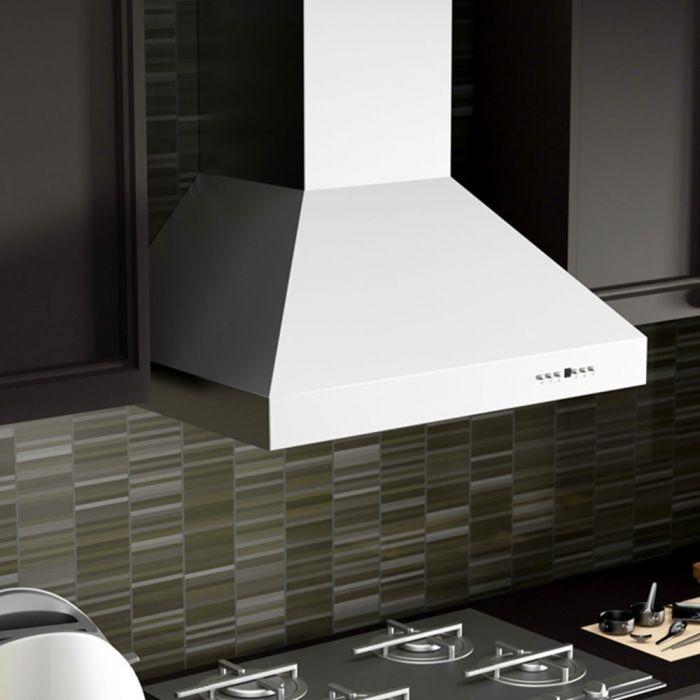

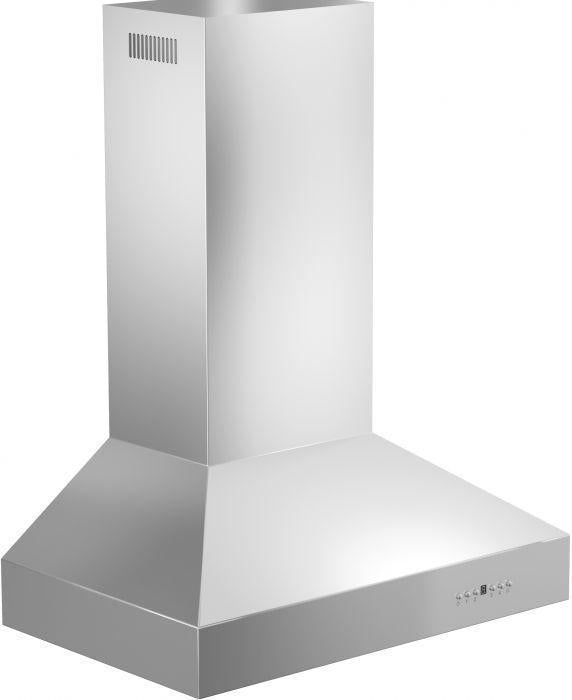

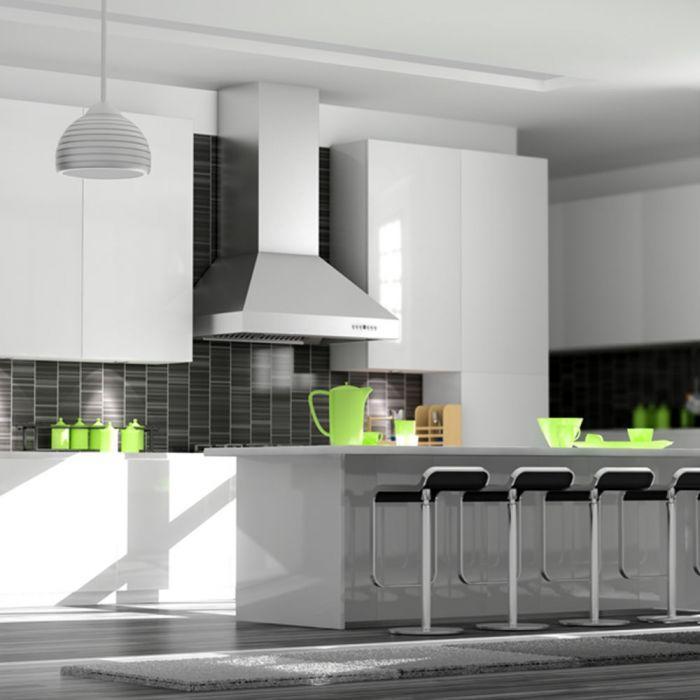

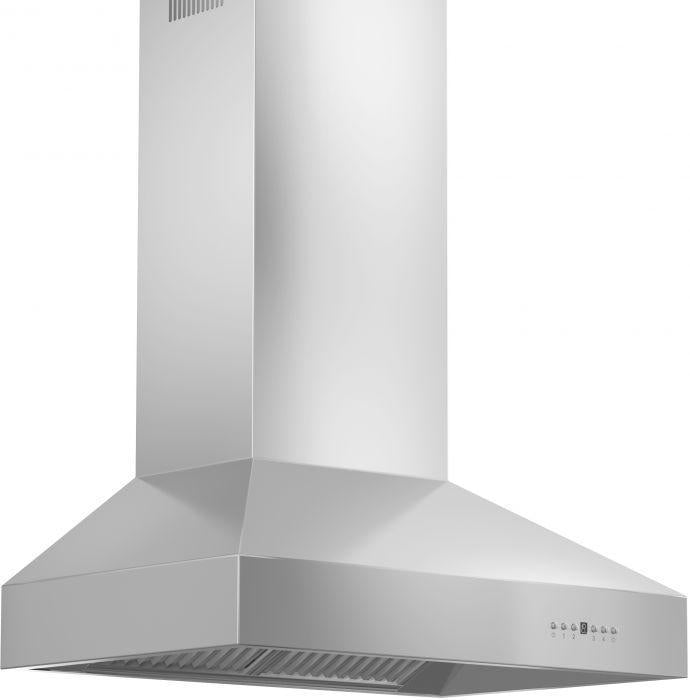

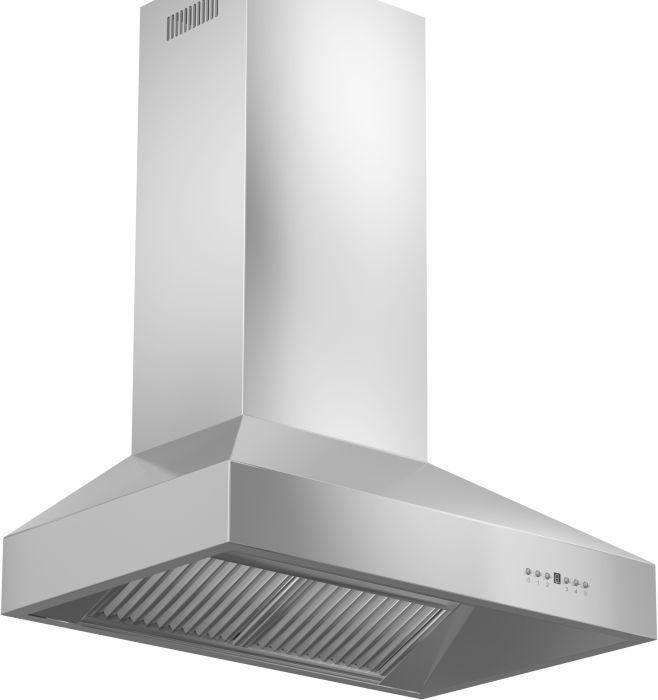

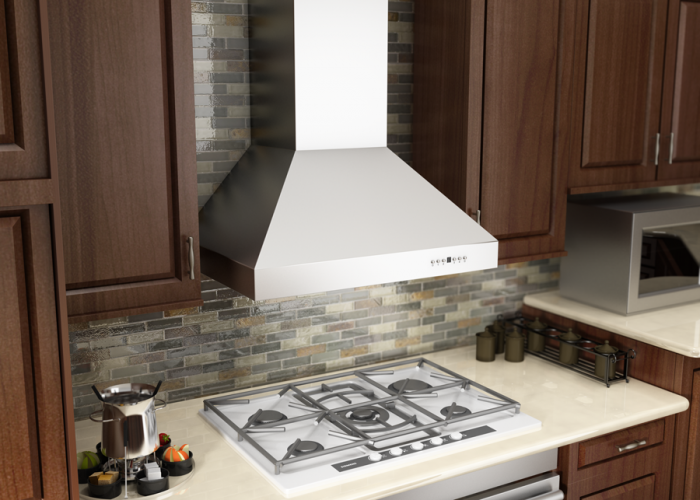

The ZLINE 697-48 is a 48-inch wall mount range hood designed for indoor kitchen use. Constructed from durable 430-grade stainless steel, this unit provides reliable ventilation performance with a modern, professional design suitable for residential kitchens.

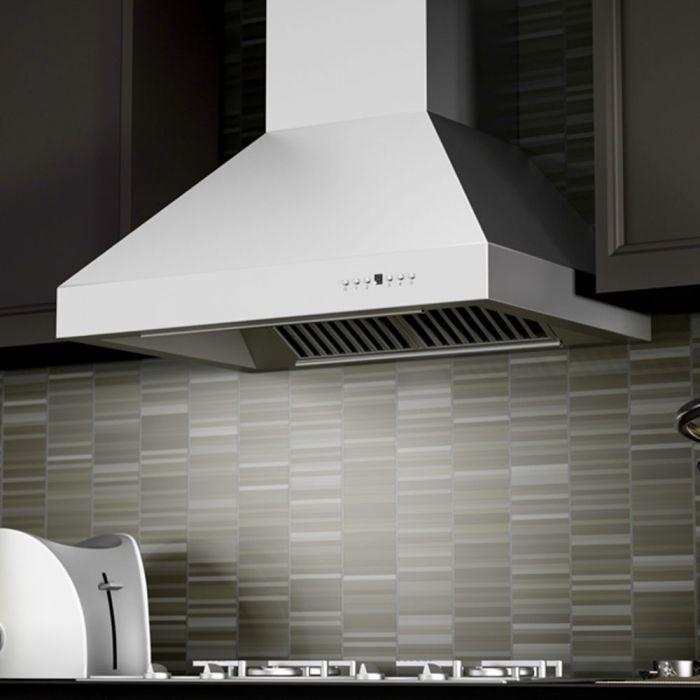

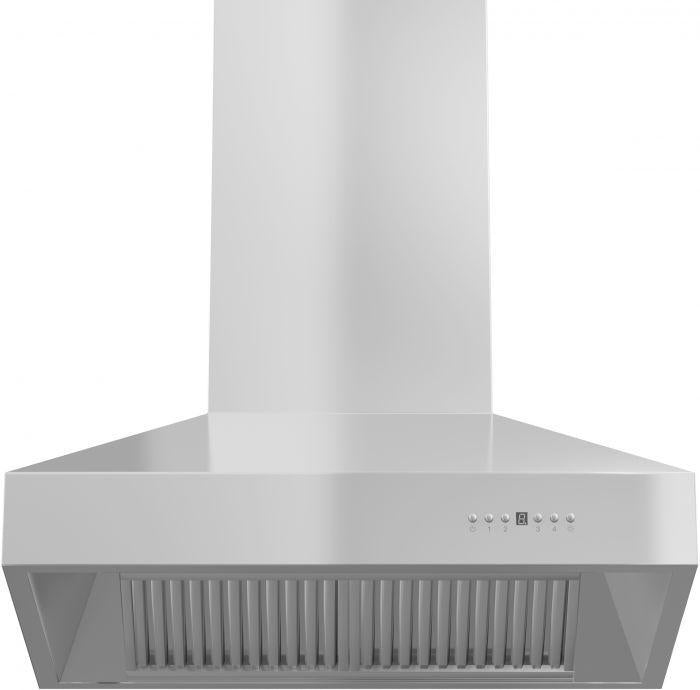

This ducted range hood features a high-performance 4-speed motor with a maximum airflow of up to 700 CFM, helping to efficiently remove smoke, grease, and odors. Integrated LED lighting improves visibility over the cooking surface, while stainless steel baffle filters capture grease and are removable for easy cleaning.

The unit includes telescoping chimney pieces to accommodate standard ceiling heights, with optional extension kits available for higher or lower ceilings.

Key Features:

• 48-inch wall mount range hood for indoor use

• Durable 430-grade stainless steel construction

• Ducted ventilation (recirculation not supported)

• 4-speed motor with up to 700 CFM airflow

• Dishwasher-safe stainless steel baffle filters

• Built-in LED lighting for cooktop illumination

• LCD control panel with timer and delayed shutoff

• Telescoping chimney included for standard ceiling heights

• ETL certified for safety and performance

Technical Specifications

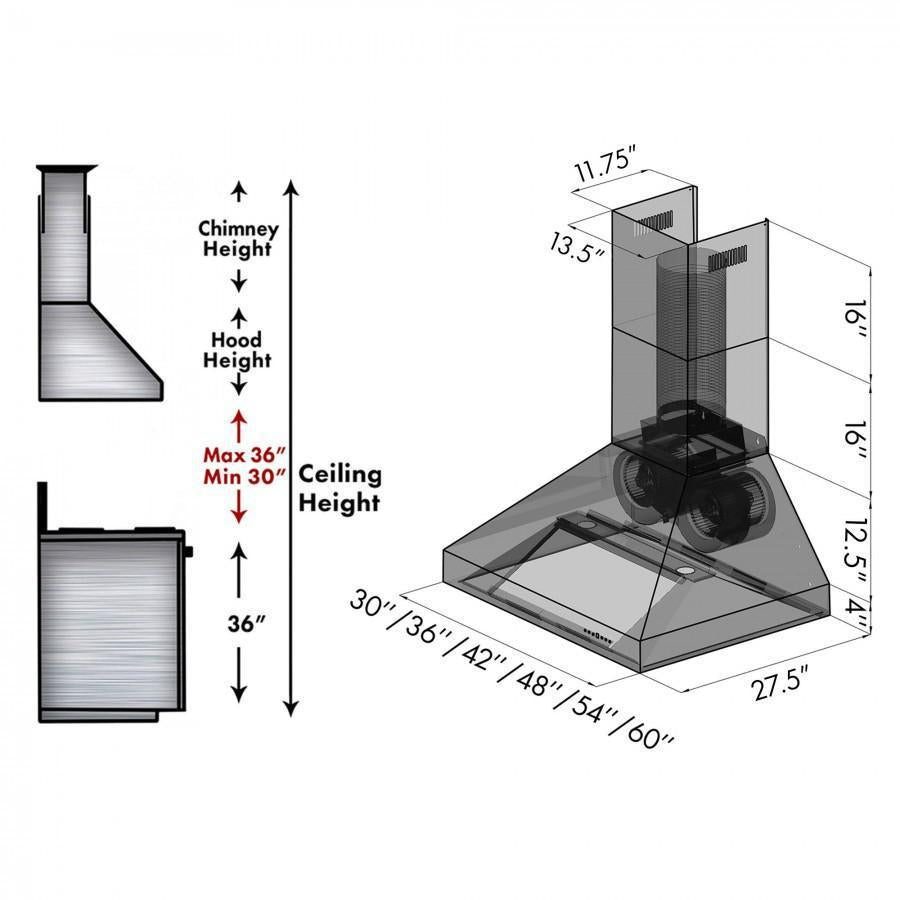

• Dimensions: 48" W x 27.5" D x 16.375" H

• Chimney Size: 13.5" W x 11.75" D x 16" H (x2, telescoping)

• Airflow: 280 / 460 / 670 / 700 CFM

• Noise Level: 30 / 42 / 51 / 56 dB

• Lighting: 4 directional LED lights (3W)

• Voltage: 110V / 60Hz

• Vent Size: 8" outlet

• Material: 430 stainless steel

• Mount Type: Wall mount

• Control Type: LCD panel with timer

• Certification: ETL listed

• Warranty: 3-year parts warranty

Installation & Compatibility

• Designed for ducted installation only (no recirculation option)

• Compatible with optional chimney extensions for ceilings up to 12 feet

• Includes standard telescoping chimney for 8–9 ft ceilings

• Short kit and extension kits available separately for custom ceiling heights

Additional Information

• Suitable for residential indoor kitchens only

• Available in multiple sizes (30", 36", 42", 54", and 60")

• Model number: 697-48
