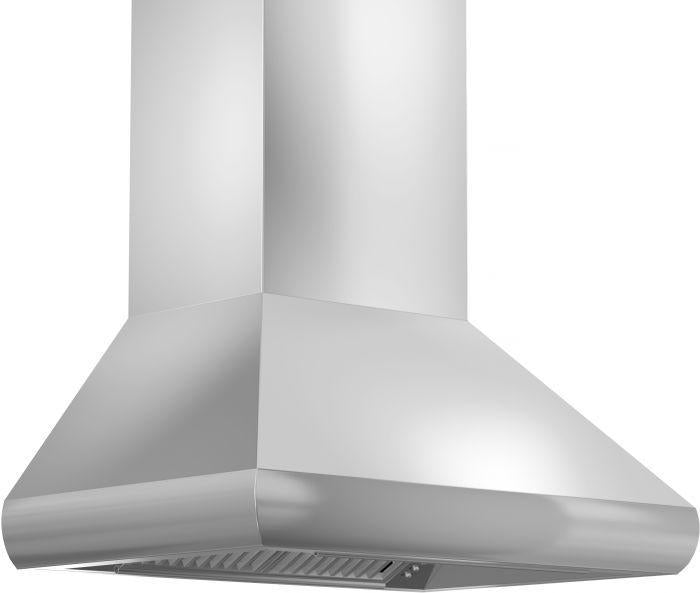

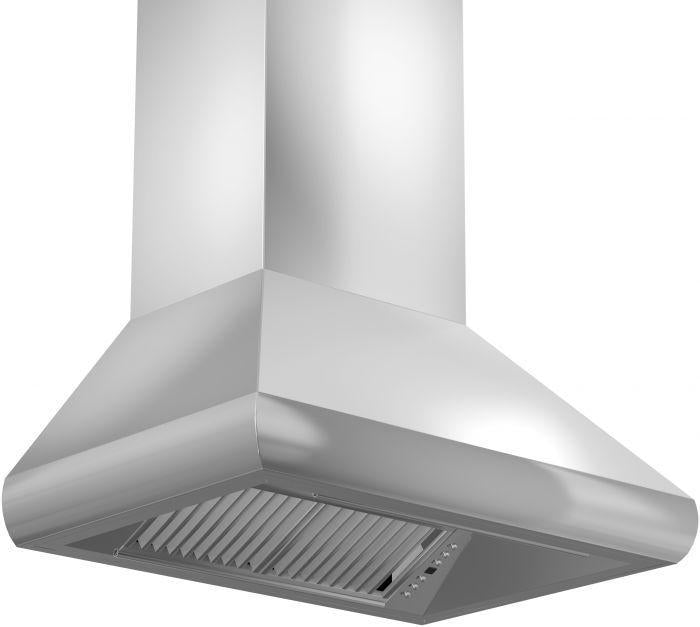

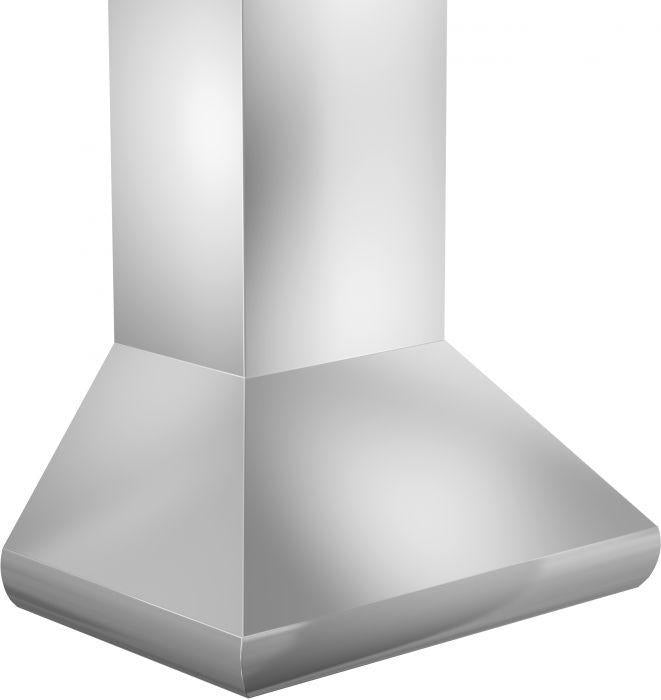

The ZLINE 687-48 is a 48-inch wall mount range hood designed for efficient ventilation and durable performance. Constructed from 430-grade stainless steel, this ducted range hood provides reliable air circulation for residential kitchens, including outdoor-approved installations.

This model features a 4-speed motor with a maximum airflow capacity of up to 700 CFM, helping to remove smoke, grease, and cooking odors effectively. Built-in LED lighting improves visibility over the cooking surface, while stainless steel baffle filters capture grease and are dishwasher-safe for easy maintenance.

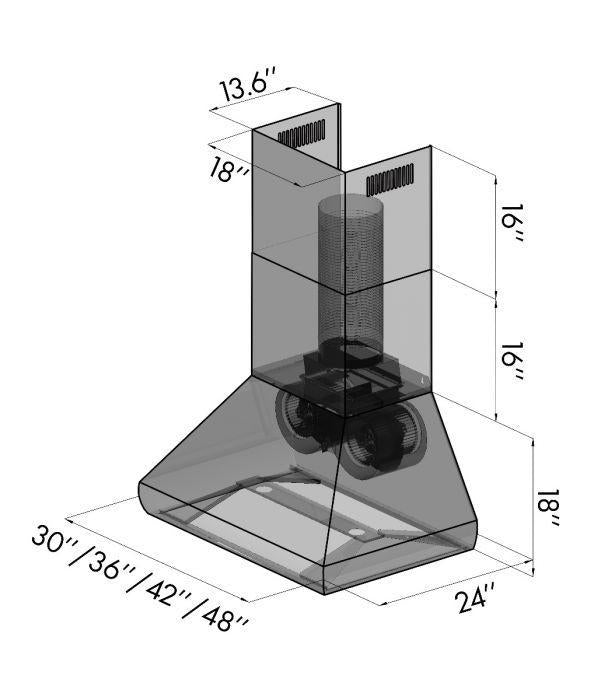

The unit includes telescoping chimney pieces to accommodate standard ceiling heights between 8 ft and 9 ft. Optional extension kits are available for higher or lower ceiling configurations.

Key Features:

• 48-Inch Wall Mount Design – Suitable for large cooking surfaces
• Up to 700 CFM Airflow – High-performance ventilation for heavy cooking
• 4-Speed Fan Control – Adjustable ventilation levels
• 430-Grade Stainless Steel Construction – Durable and corrosion-resistant

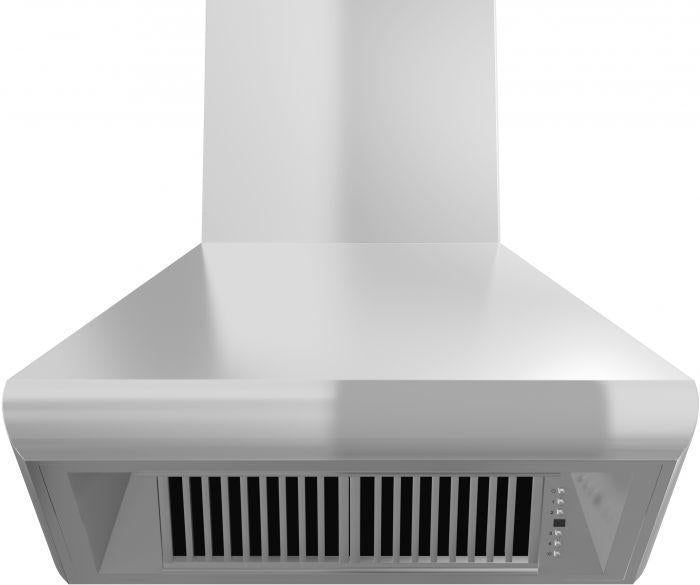

• Dishwasher-Safe Baffle Filters – Easy cleaning and maintenance
• Integrated LED Lighting – Enhanced visibility while cooking
• Quiet Operation – Maximum noise level approximately 56 dB
• Ducted Ventilation Only – Designed for external venting (no recirculation option)
• Outdoor Approved – Suitable for covered outdoor kitchen use
• Adjustable Chimney Included – Fits ceilings 8 ft to 9 ft (extensions available)

Additional Information

• Ceiling Compatibility:
  • < 8 ft: Requires Short Kit (SK-687)
  • 9 ft – 10 ft: Requires Extension (1PCEXT-687)
  • 10 ft – 12 ft: Requires Extension (2PCEXT-687)
• Compatible Crown Moldings: CM1-687, CM2-687, CM3-687, CM4-687, CM5-687
• Also Available Sizes: 30", 36", 42"
