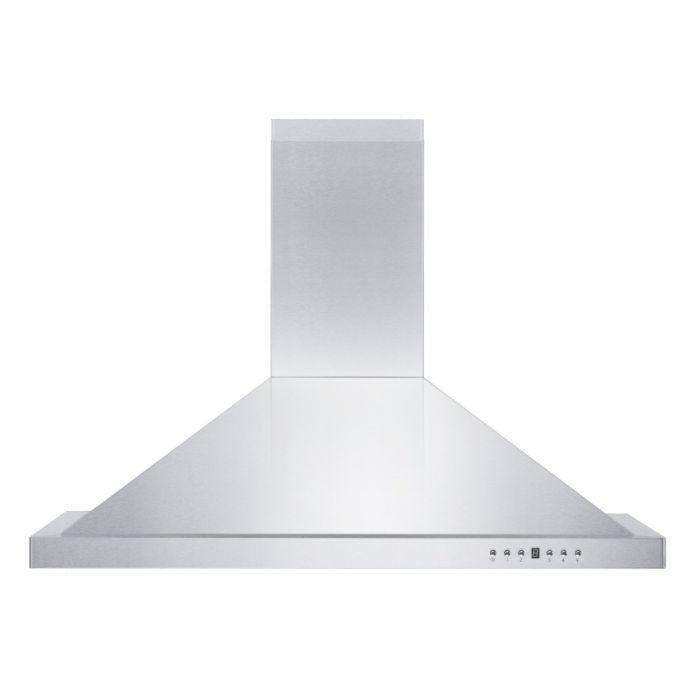

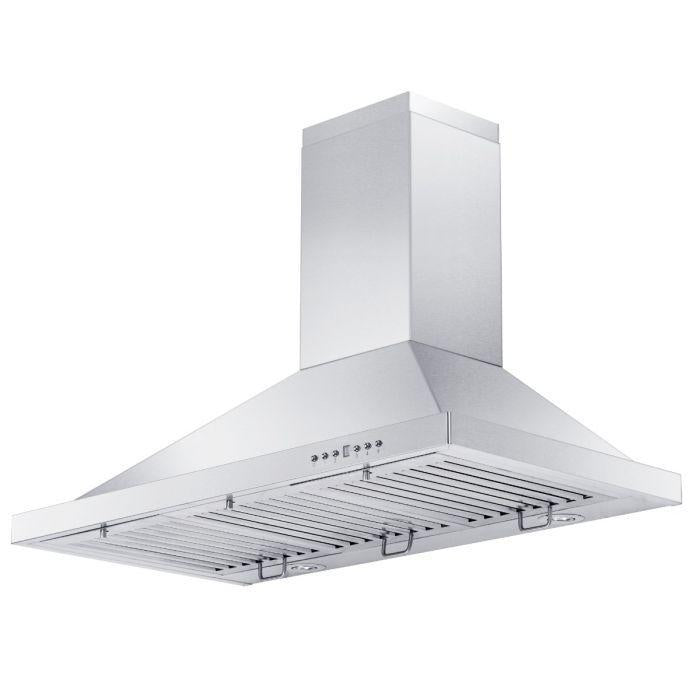

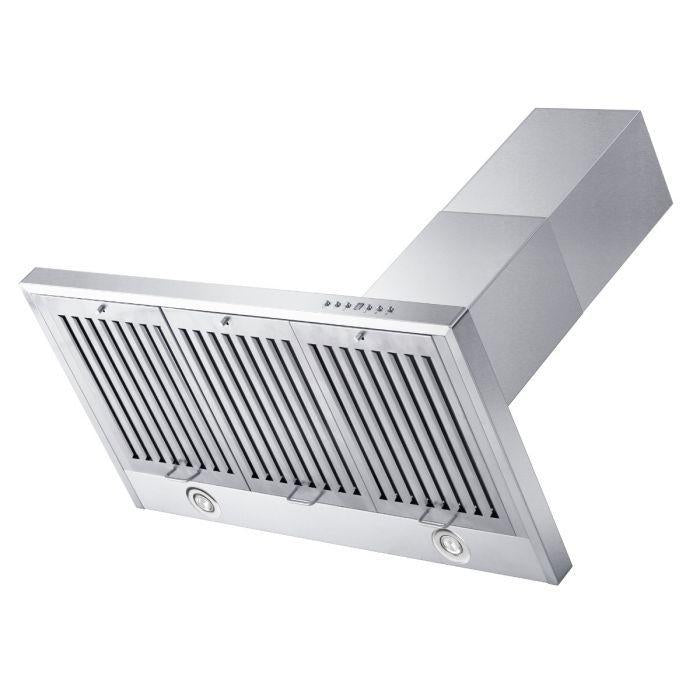

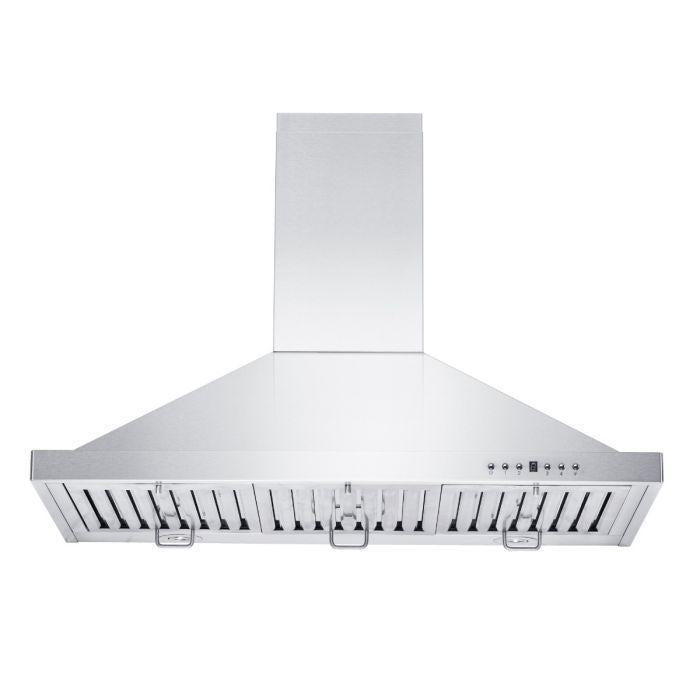

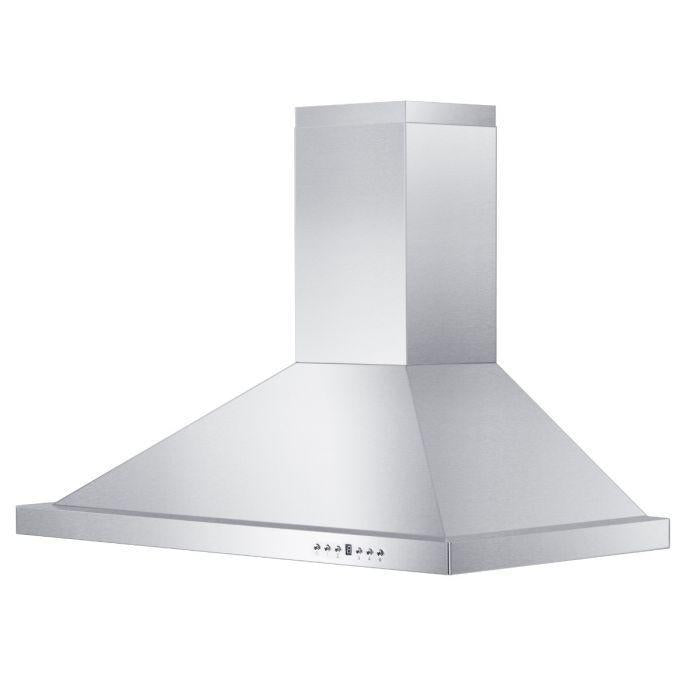

The ZLINE KB-304-48 is a 48-inch wall mount outdoor range hood designed for high-performance ventilation in outdoor kitchens. Constructed from 304-grade stainless steel, this unit is approved for outdoor use and built for durability in varying weather conditions.

This range hood features a 4-speed motor with airflow up to 400 CFM, effectively removing smoke, grease, and odors from your cooking area. Dishwasher-safe stainless steel baffle filters help capture grease and are easy to clean, while integrated LED lighting provides clear visibility during cooking.

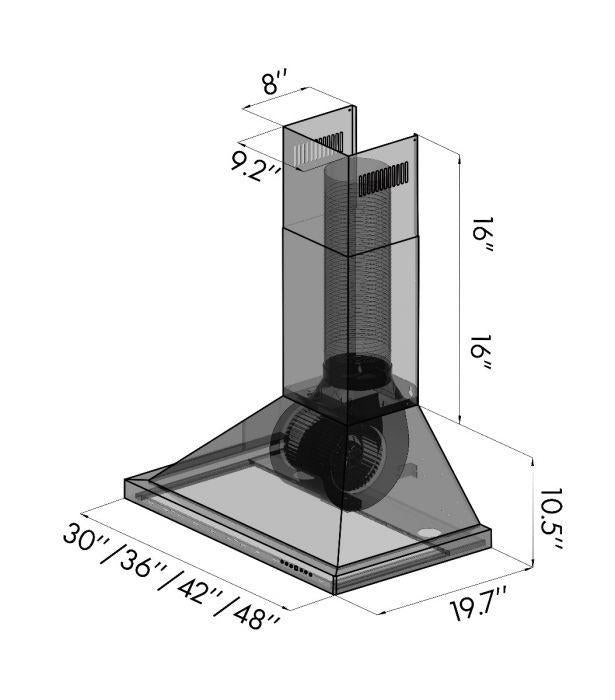

The unit includes telescoping chimney pieces to accommodate standard ceiling heights between 8 and 9 feet. Optional extensions and accessories are available for customized installation.

Key Features:

• 48-inch wall mount outdoor range hood

• 304-grade stainless steel construction (outdoor approved)

• Convertible venting (ducted or recirculating with optional CF1 filters)

• 4-speed motor with airflow up to 400 CFM

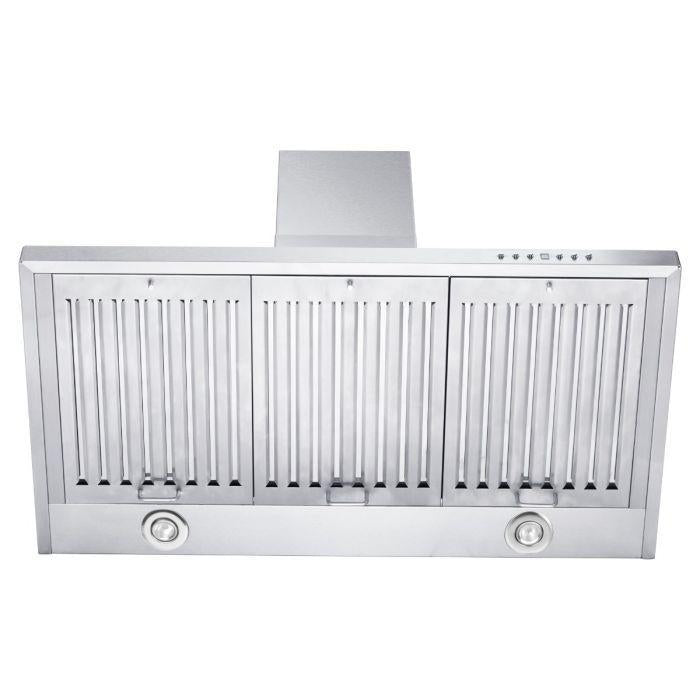

• Dishwasher-safe stainless steel baffle filters

• Built-in LED lighting

• Includes telescoping chimney for 8–9 ft ceilings

• Compatible with optional chimney extensions and crown moldings

• Maximum noise level up to 56 dB

Installation & Compatibility

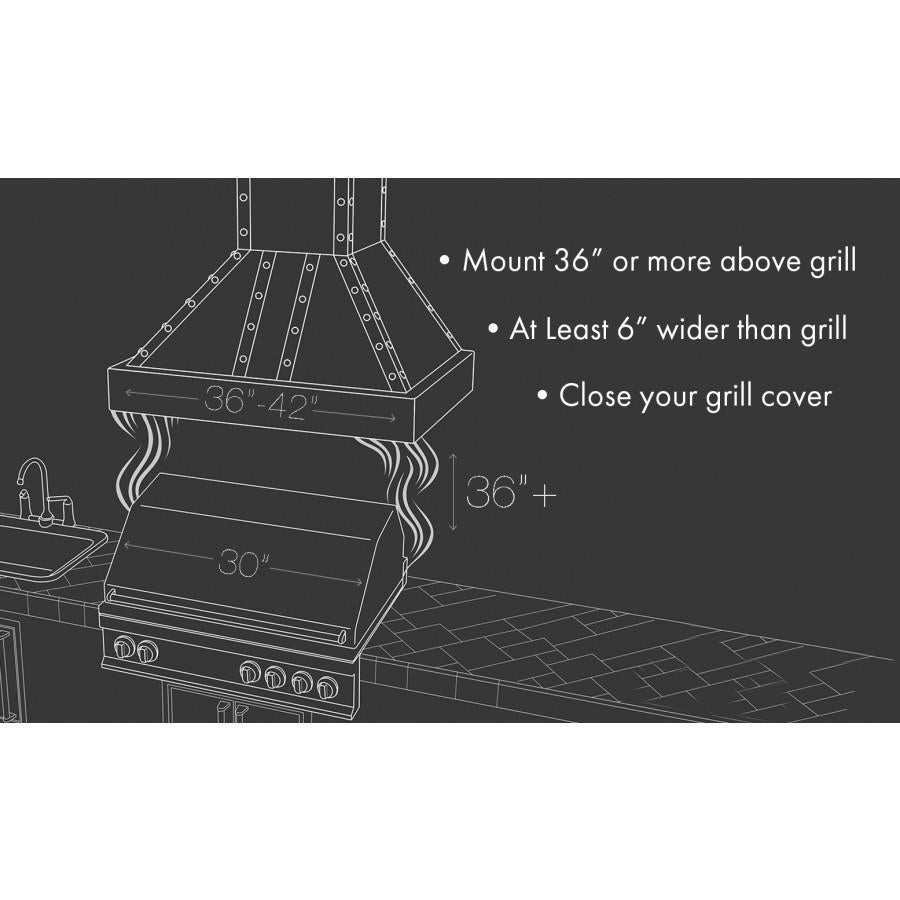

• Recommended installation height: minimum 36 inches above cooking surface

• Recirculating option available (CF1 filters required, sold separately)

• Ceiling height compatibility:

  • < 8 ft: Short kit required (SK-KB/KL2/KL3-304)

  • 8–9 ft: No extension required

  • 9–10 ft: Extension kit required (1PCEXT-KB/KL2/KL3-304)

  • 10–12 ft: Extension kit required (2PCEXT-KB/KL2/KL3-304)

• Crown moldings available separately (CM1–CM6 series)

Additional Information

• Certified for outdoor use

• Also available in 30", 36", and 42" sizes

• Includes necessary components for standard installation
