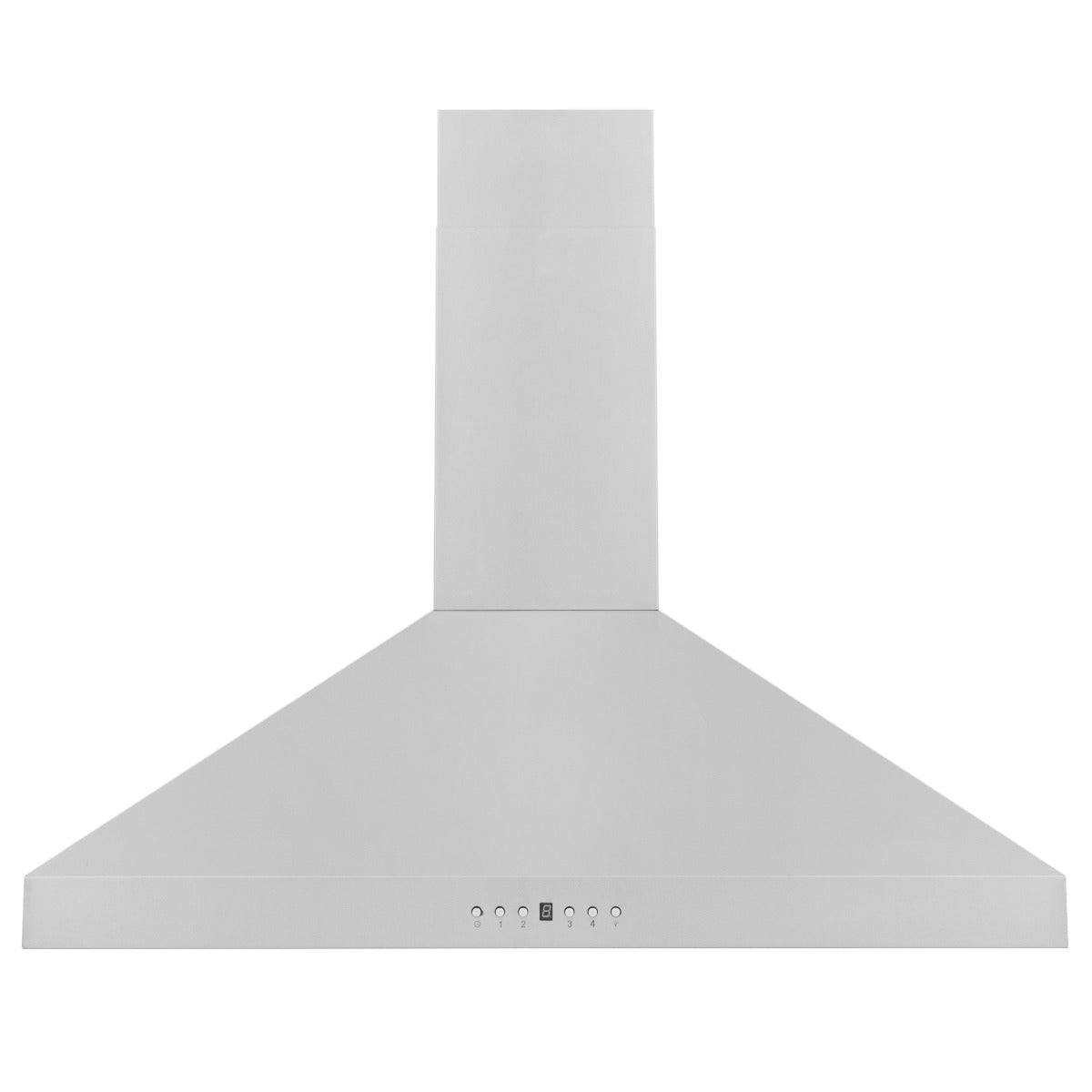

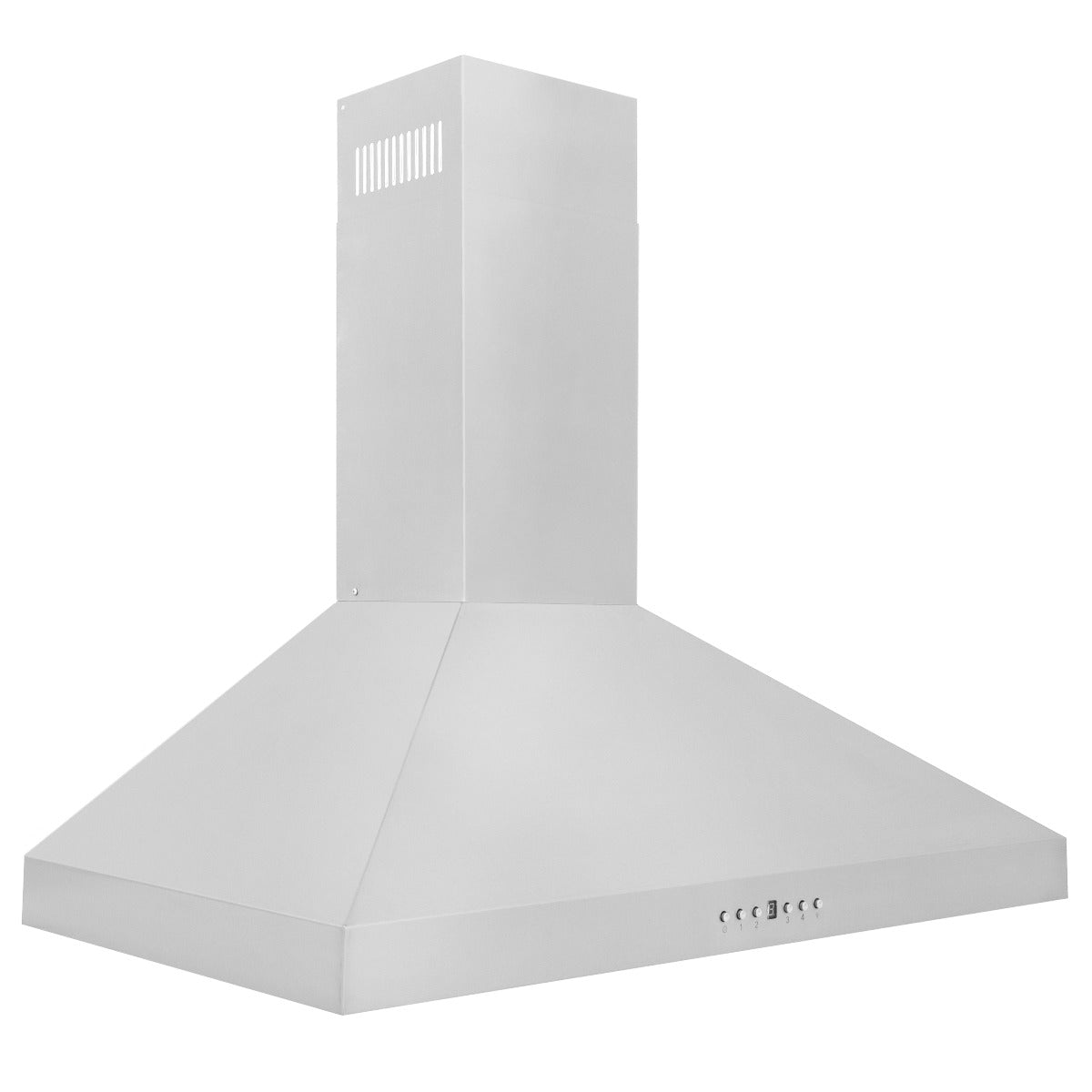

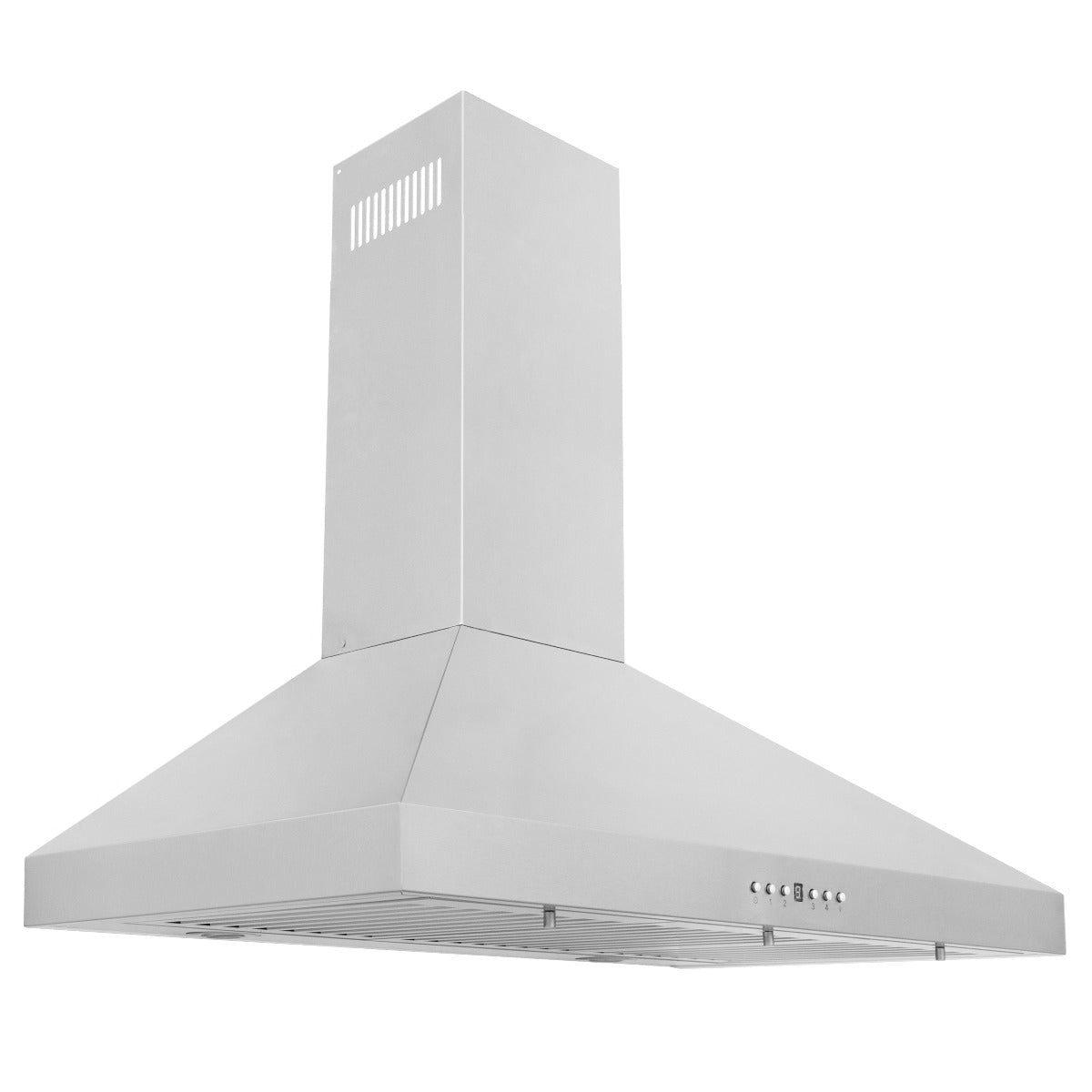

The ZLINE KL3-36 is a 36-inch wall mount range hood constructed from durable 430-grade stainless steel, designed to provide reliable ventilation performance and a modern kitchen appearance. Equipped with a high-performance 4-speed motor delivering up to 400 CFM airflow, this range hood effectively removes smoke, grease, and odors during cooking.

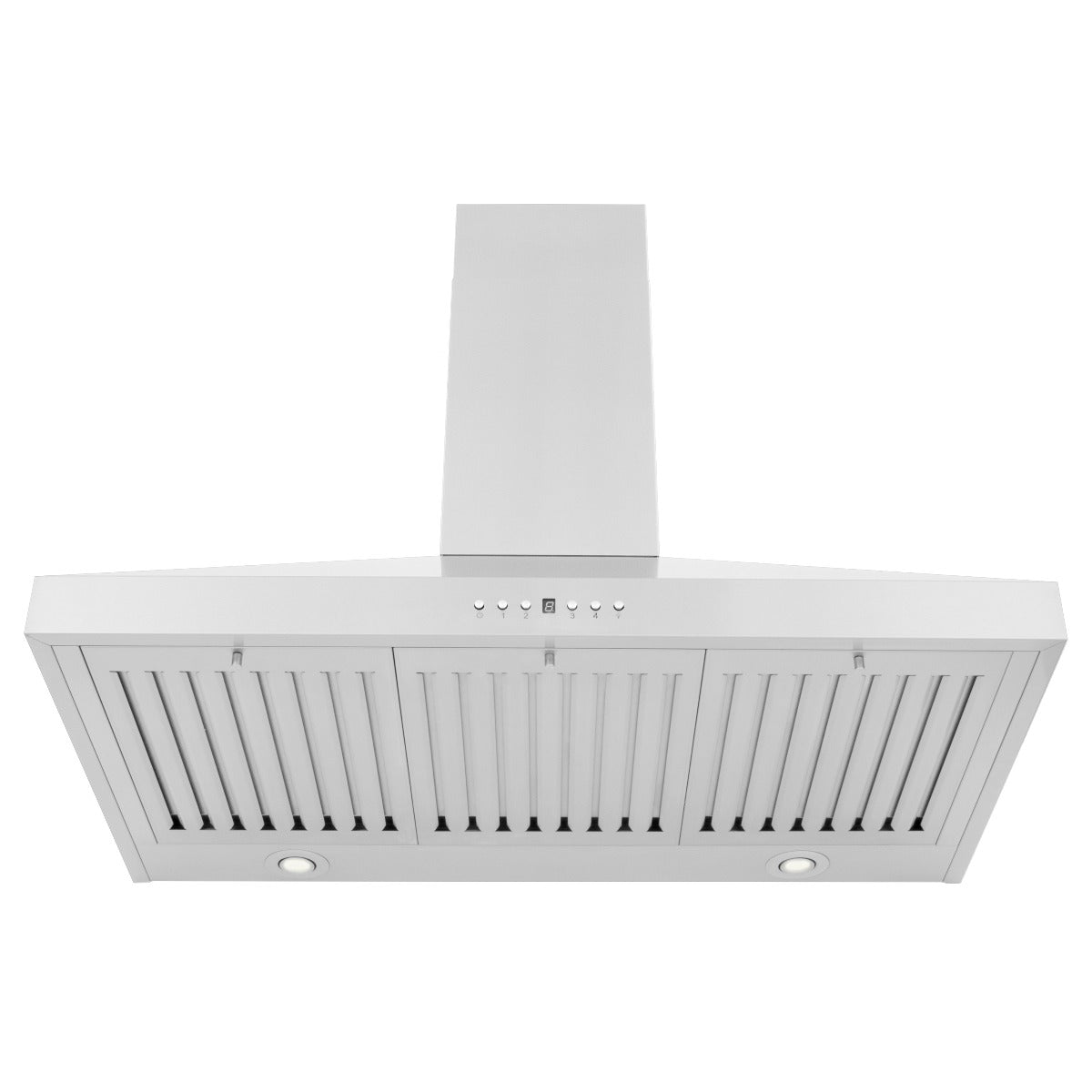

The unit features dishwasher-safe stainless steel baffle filters for easy maintenance, along with built-in LED lighting to improve visibility over the cooking surface. A user-friendly control panel with LCD display and delayed auto shutoff function allows convenient operation.

This model includes two telescoping chimney sections for flexible installation, fitting standard ceiling heights between 8 and 9 feet. Additional extension or short kits are available for varying ceiling heights. The hood also supports ductless/recirculating installation with optional charcoal filters (sold separately).

Key Features:

• 36-inch wall mount range hood in stainless steel

• High-performance 4-speed motor with up to 400 CFM airflow

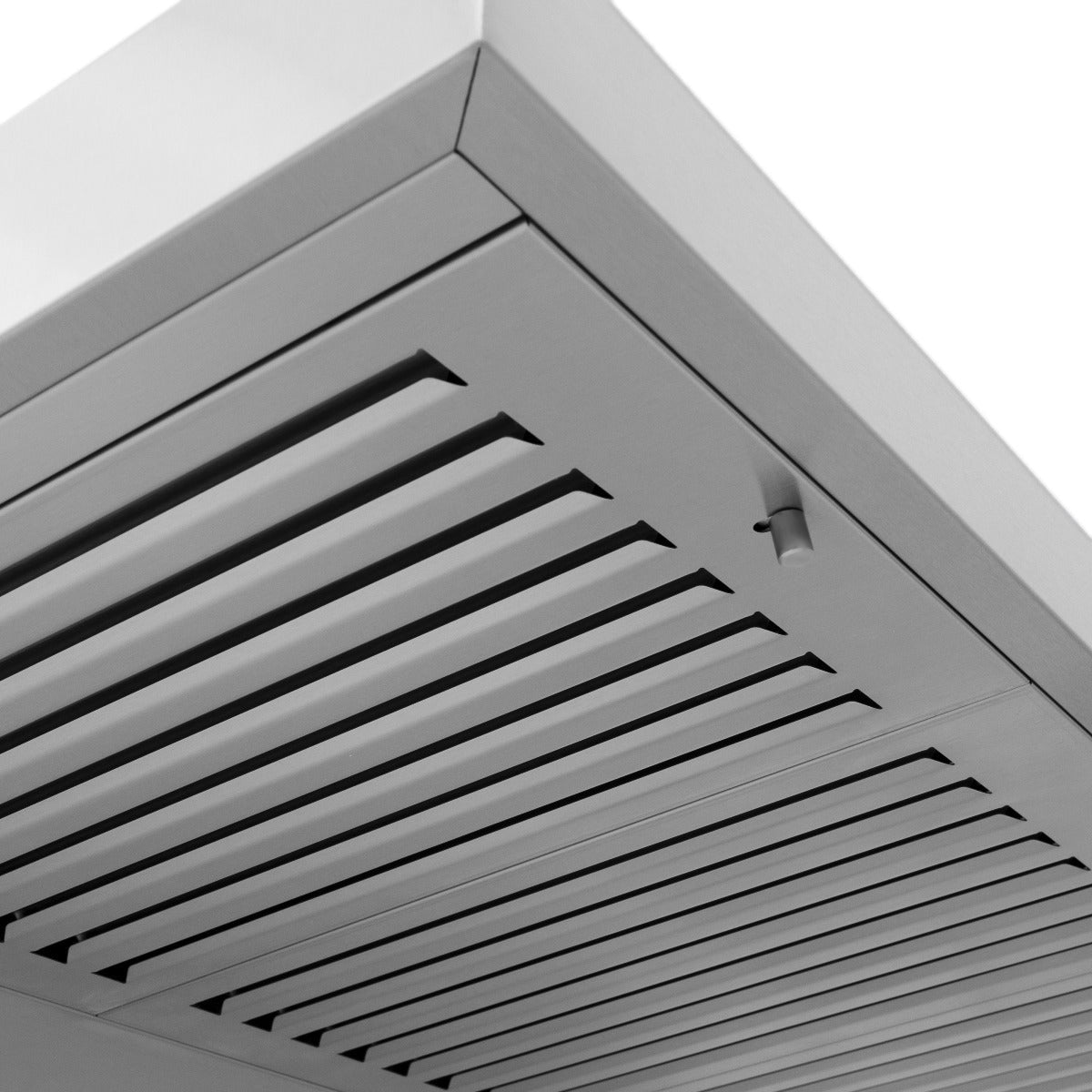

• Dishwasher-safe stainless steel baffle filters

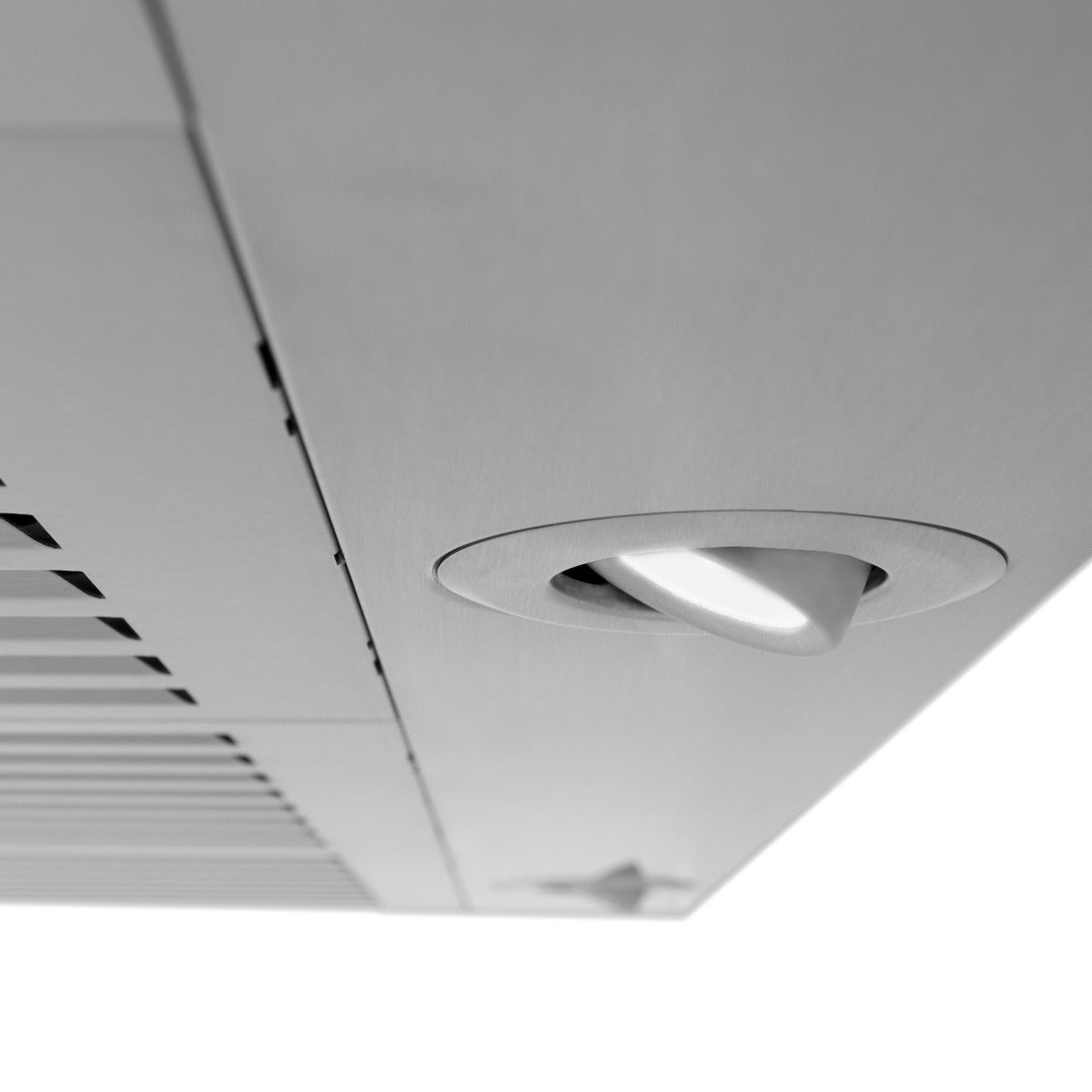

• Built-in LED lighting (2 directional lights, 3W each)

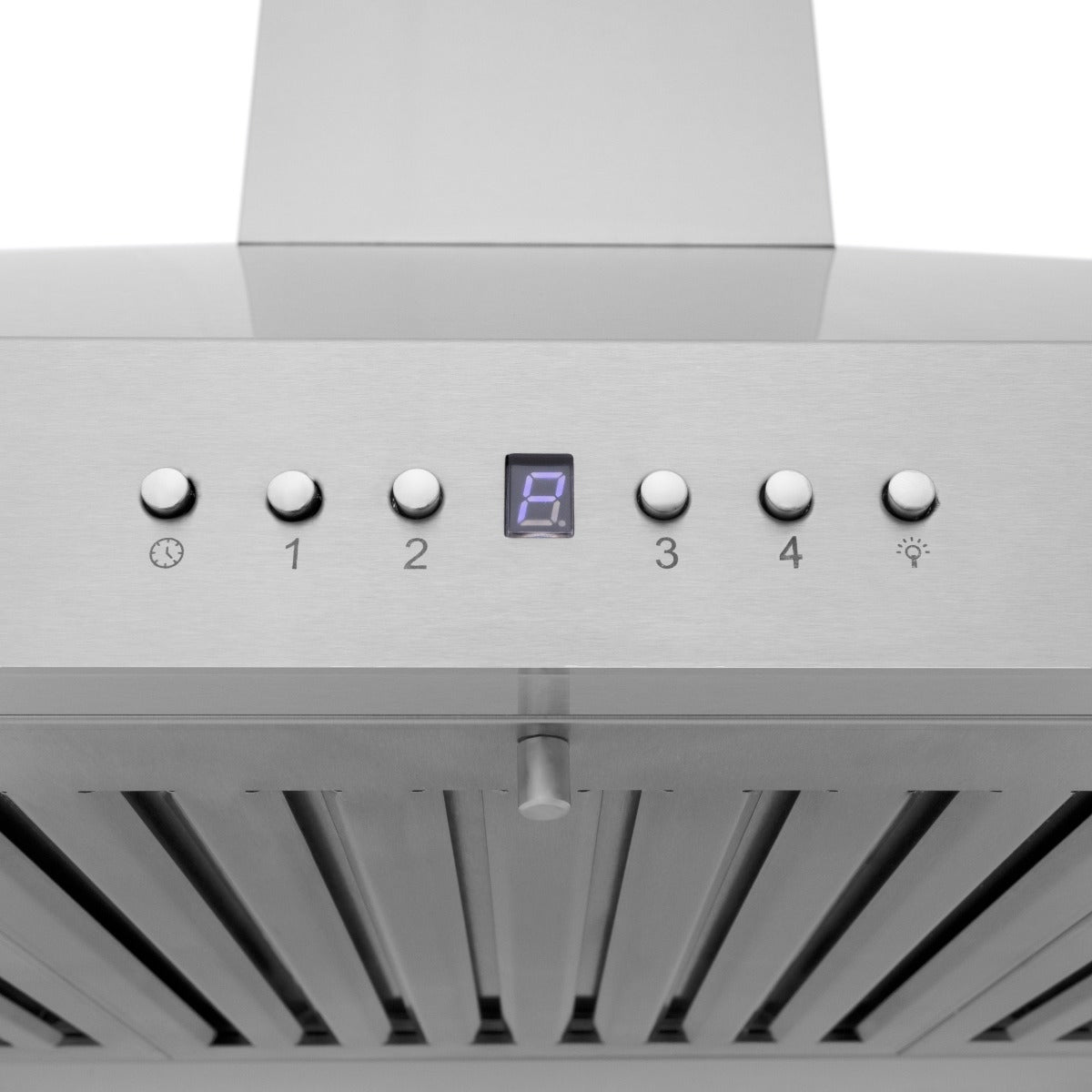

• LCD control panel with timer and delayed shutoff function

• Convertible vent design (ducted or ductless with optional filters)

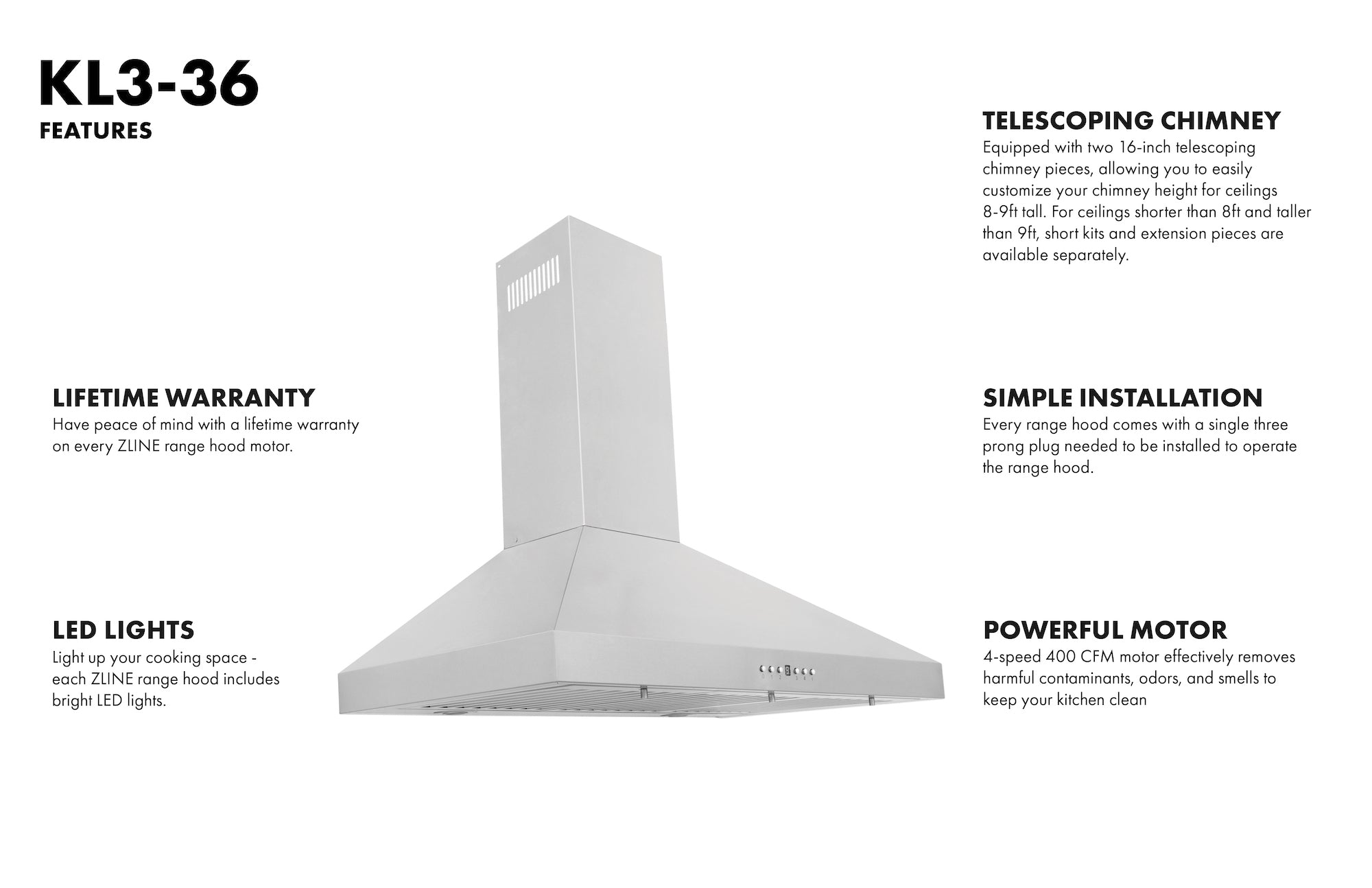

• Two telescoping chimney pieces for adjustable installation

• Quiet operation ranging from 20 to 41 decibels

• ETL and UL listed for safety compliance

Technical Specifications

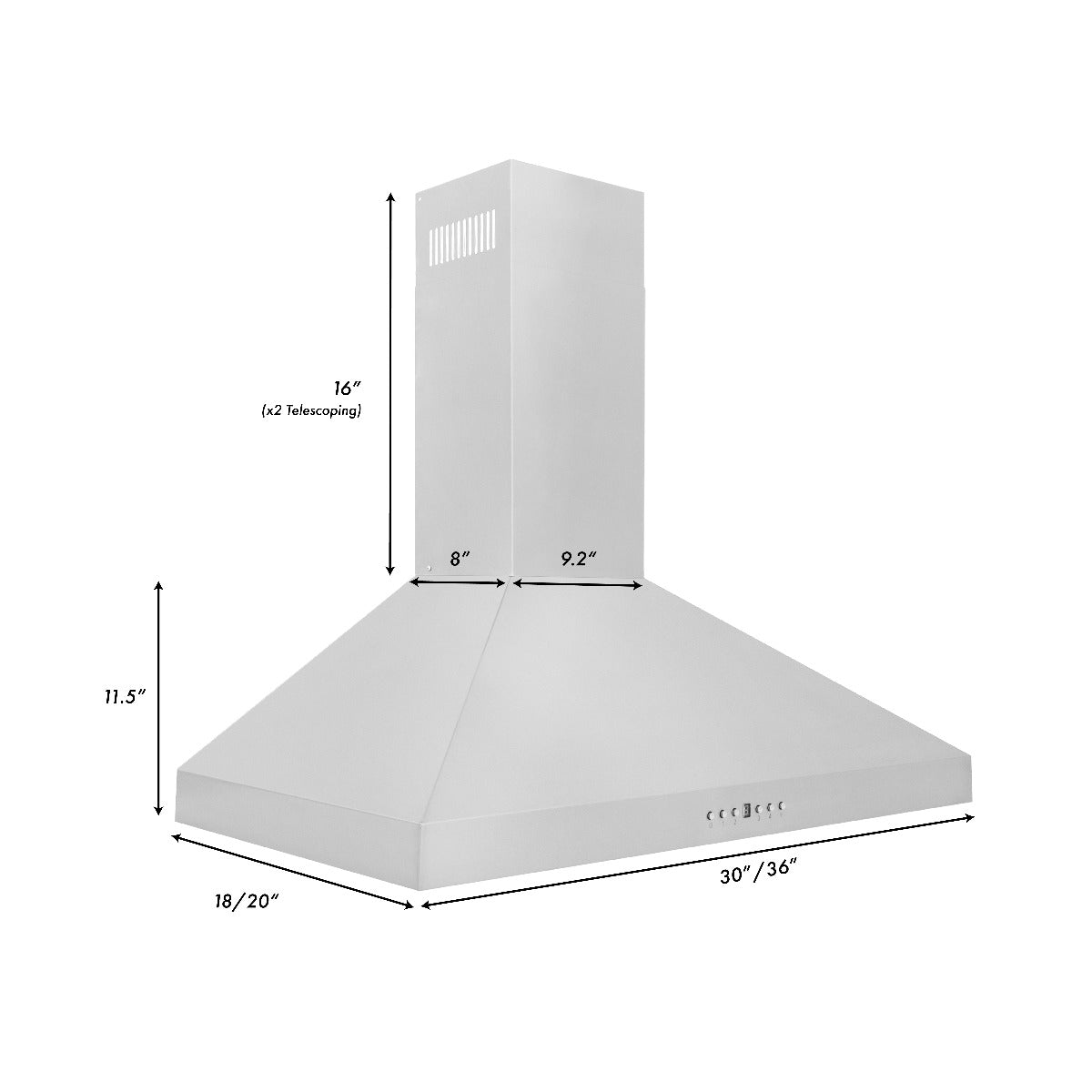

• Dimensions: 36" W x 19.25" D x 11.5" H

• Chimney Dimensions: 9.2" W x 8" D x 16" H (x2)

• Airflow: 120 / 240 / 320 / 400 CFM

• Noise Level: 20 / 29 / 34 / 41 dB

• Venting Size: 6-inch outlet

• Voltage: 110V / 60Hz

• Material: 21-gauge #430 stainless steel

• Mount Type: Wall mounted

• Control Type: LCD panel with timer

• Warranty: 3-year parts warranty

• Certification: ETL and UL listed

Installation & Compatibility

• Fits ceiling heights:

  • 8–9 ft (standard installation)

  • <8 ft (requires short kit SK-KB/KL2/KL3)

  • 9–10 ft (requires 1-piece extension)

  • 10–12 ft (requires 2-piece extension)

• Compatible with optional crown molding kits (sold separately)

• Ductless conversion available with CF1 charcoal filters (not included)
