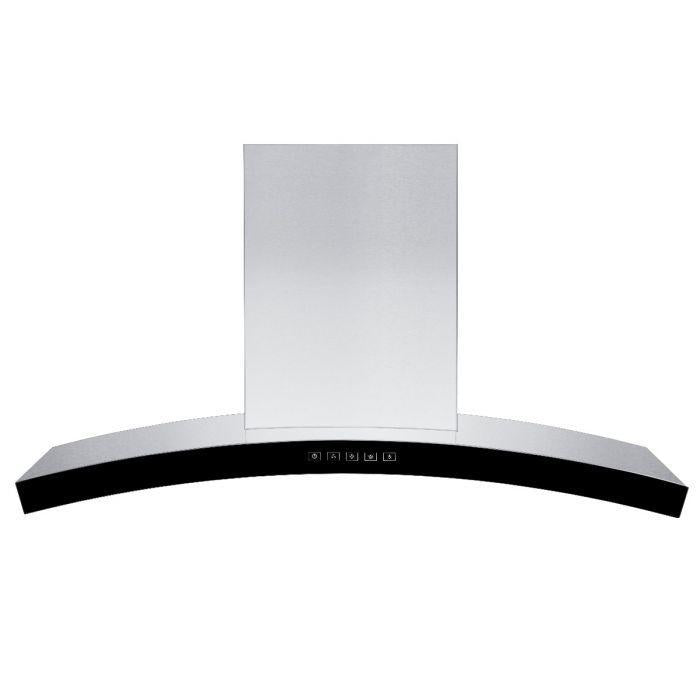

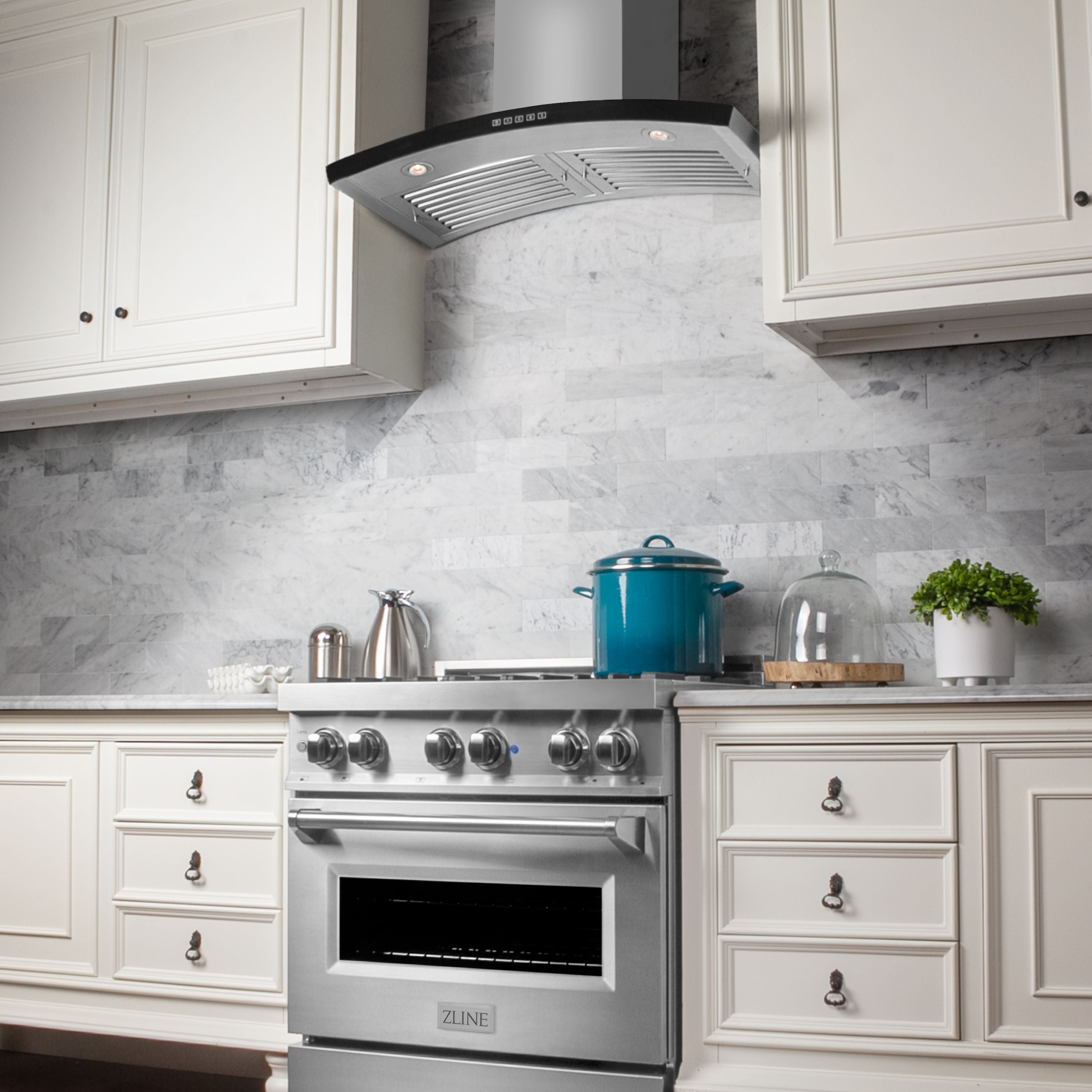

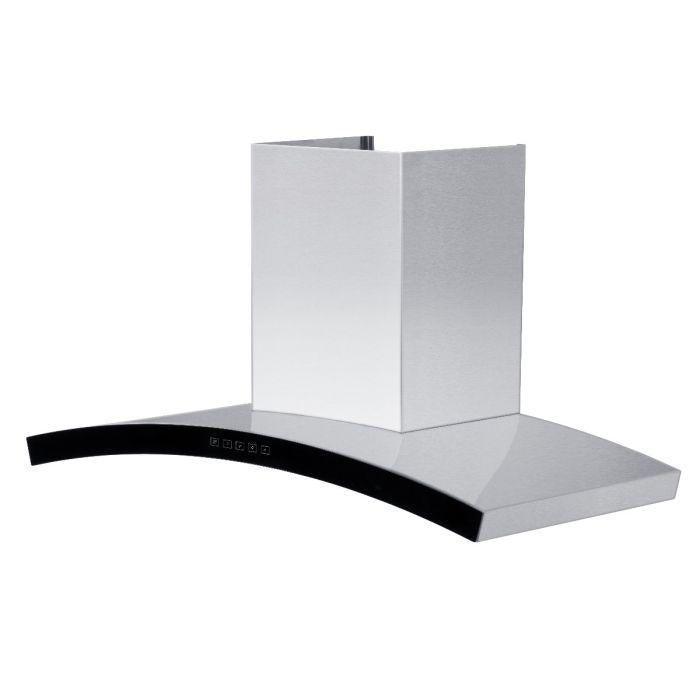

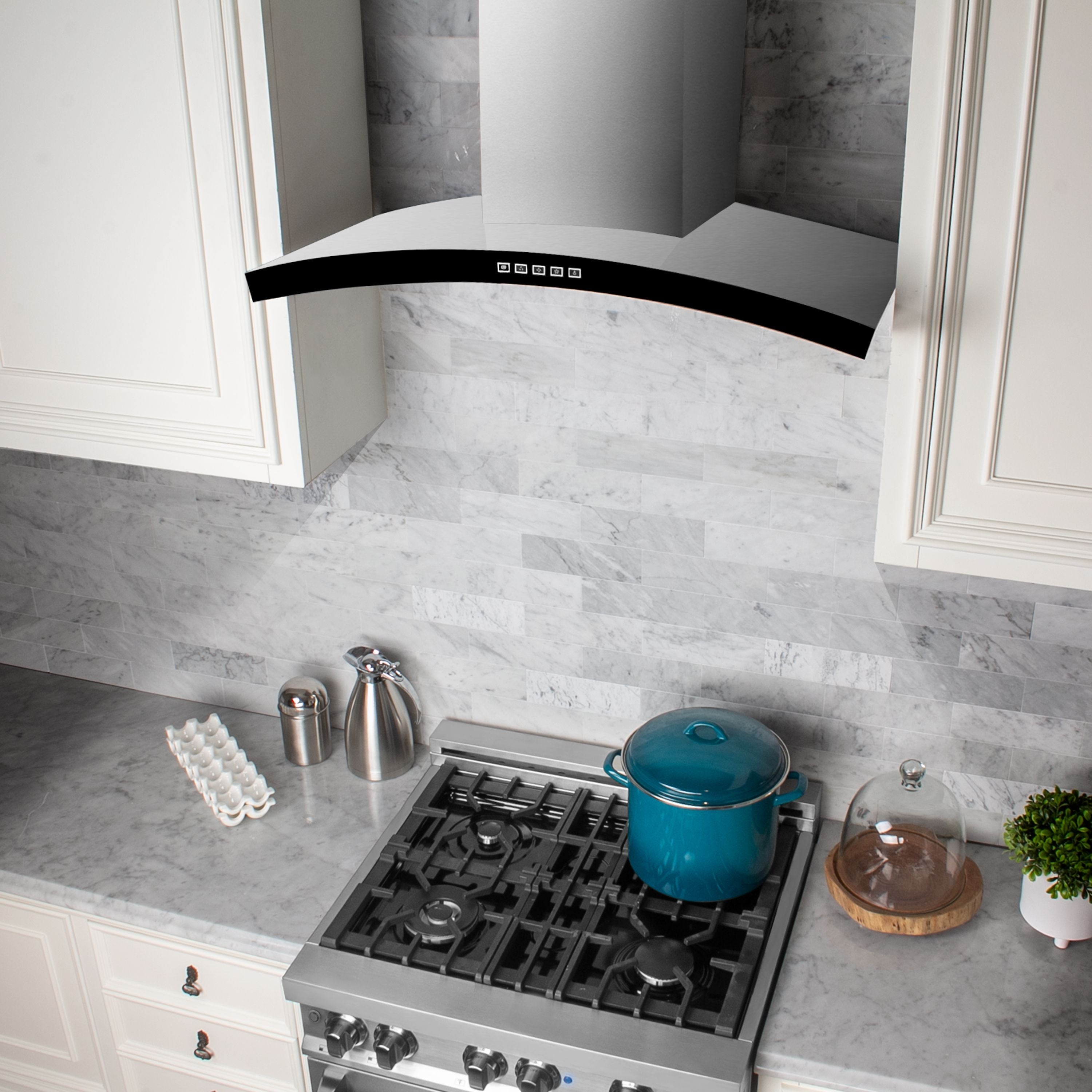

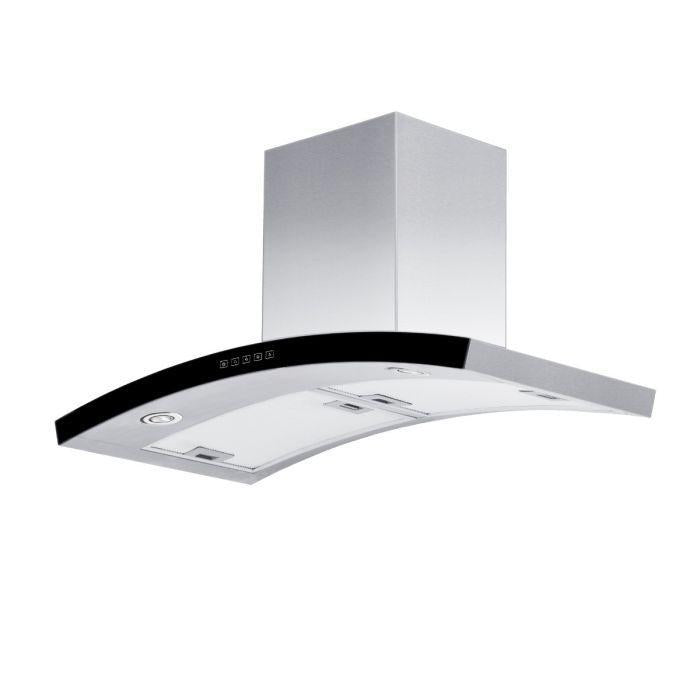

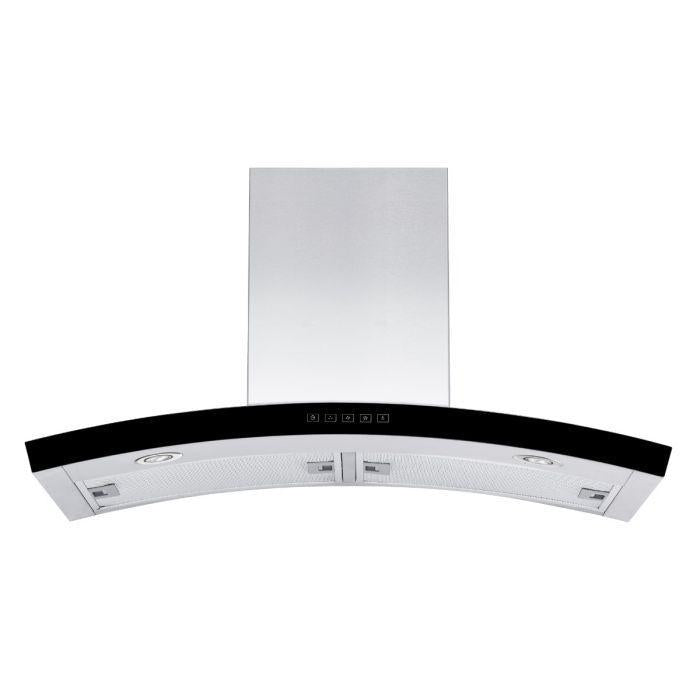

The ZLINE KN6-30 is a 30-inch wall mount range hood constructed from 430-grade stainless steel with a modern stainless steel and glass design. It is designed for indoor kitchen use and provides effective ventilation with a high-performance 3-speed motor delivering up to 400 CFM airflow.

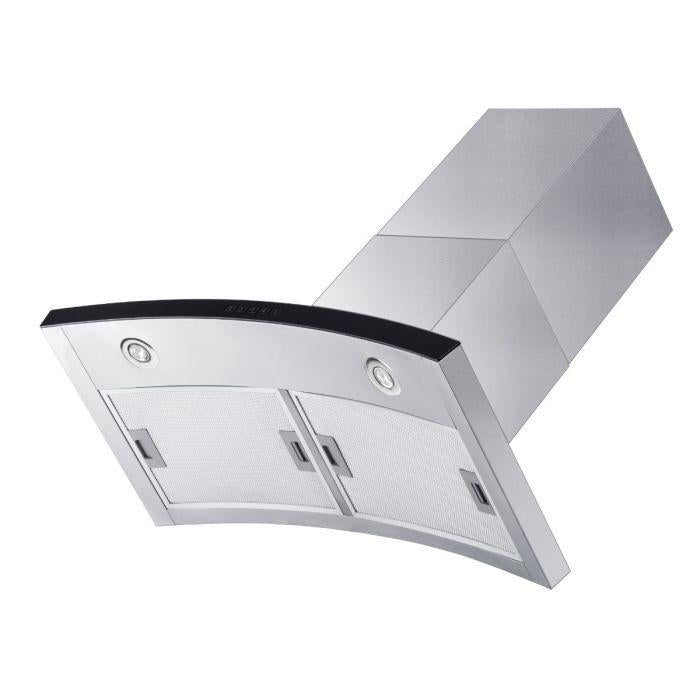

This range hood features dishwasher-safe aluminum mesh filters that help capture grease and cooking residue, along with built-in LED lighting to improve visibility over the cooking surface. The unit includes a user-friendly control panel with timer and delayed shutoff functionality.

The telescoping chimney system allows installation in standard ceiling heights between 8 and 9 feet. Optional extension kits and short kits are available for ceilings outside this range. The hood supports both ducted and ductless installation (charcoal filters sold separately).

Key Features:

• 30-Inch Wall Mount Design – Suitable for standard kitchen cooktop setups

• Up to 400 CFM Airflow – Efficient ventilation for smoke, grease, and odors

• 3-Speed Fan Control – Adjustable ventilation settings for different cooking needs

• Stainless Steel Construction – Made from durable 430-grade stainless steel

• Stainless Steel & Glass Design – Modern appearance for contemporary kitchens

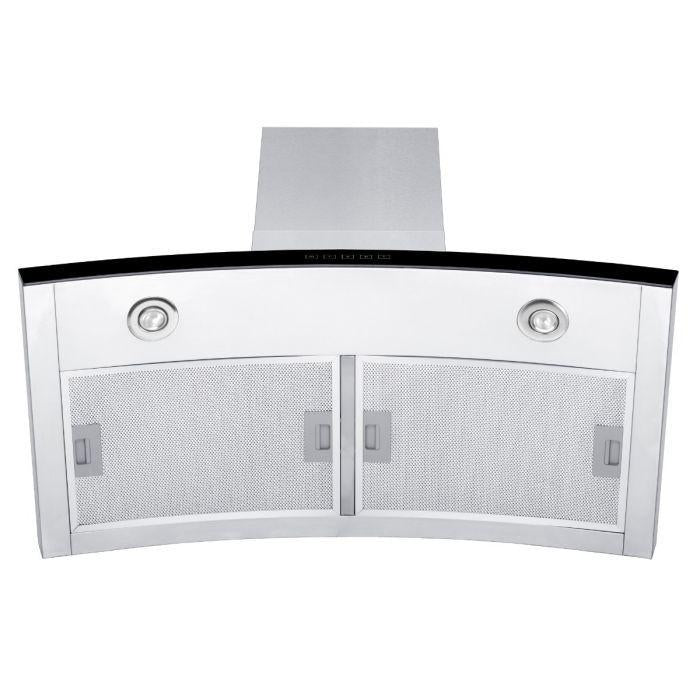

• Dishwasher-Safe Mesh Filters – Easy maintenance and grease filtration

• LED Lighting – Dual directional lights for improved cooking visibility

• Ducted or Ductless Option – Compatible with charcoal filters (sold separately)

• Telescoping Chimney Included – Fits most ceilings between 8 ft. and 9 ft.

• Quiet Operation – Noise levels range from 20 to 41 dB

• LCD Control Panel – Includes timer and delayed shutoff function

• 6-Inch Vent Outlet – Standard duct size with backdraft damper included

• ETL Certified – Meets safety and electrical standards

Specifications

• Brand: ZLINE Kitchen and Bath

• Model: KN6-30

• Mount Type: Wall Mount

• Material: 430 Stainless Steel

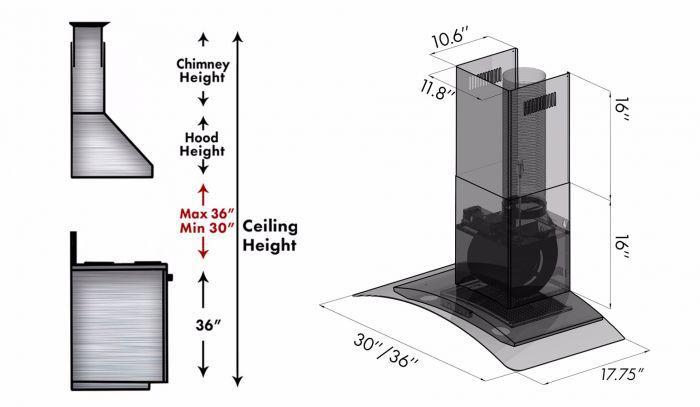

• Dimensions: 30" W x 17.75" D x 4" H

• Chimney Dimensions: 11.8" W x 10.6" D x 16" H (x2, telescoping)

• Airflow: 120 / 240 / 320 / 400 CFM

• Motor: 3-Speed High Performance Motor

• Noise Level: 20 / 29 / 34 / 41 dB

• Lighting: 2 x 3W LED Lights

• Voltage: 110V / 60Hz

• Control Type: LCD Panel with Timer

• Filters: Aluminum Mesh (Dishwasher Safe)

• Venting Size: 6" Outlet

• Certifications: ETL Listed

• Warranty: 3-Year Parts Warranty

Compatibility & Installation Notes

• Ductless Conversion: Requires CF1 charcoal filters (sold separately)

• Ceiling Height Options:

  • Under 8 ft.: Requires short kit (SK-KN)

  • 8–9 ft.: Standard installation (no kit required)

  • 9–10 ft.: Requires 1-piece extension (1PCEXT-KN)

  • 10–12 ft.: Requires 2-piece extension (2PCEXT-KN)

• Crown Moldings: Available separately (CM series)

• Outdoor Use: Not suitable for outdoor installation
