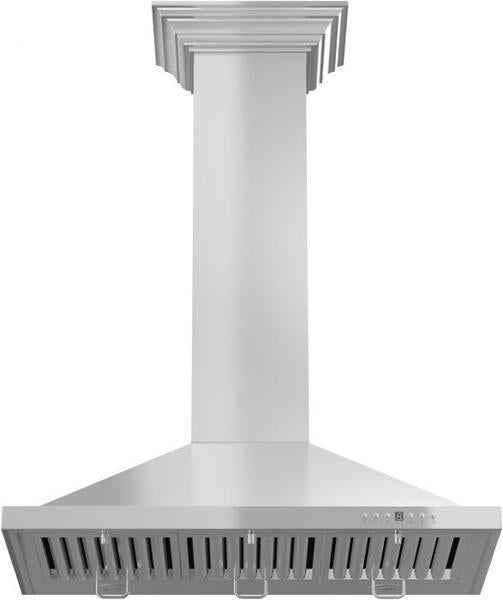

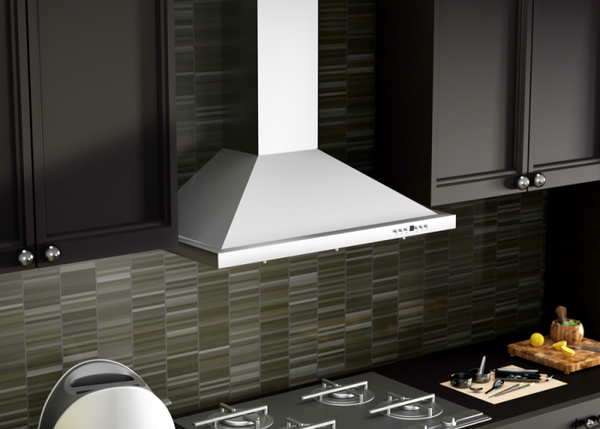

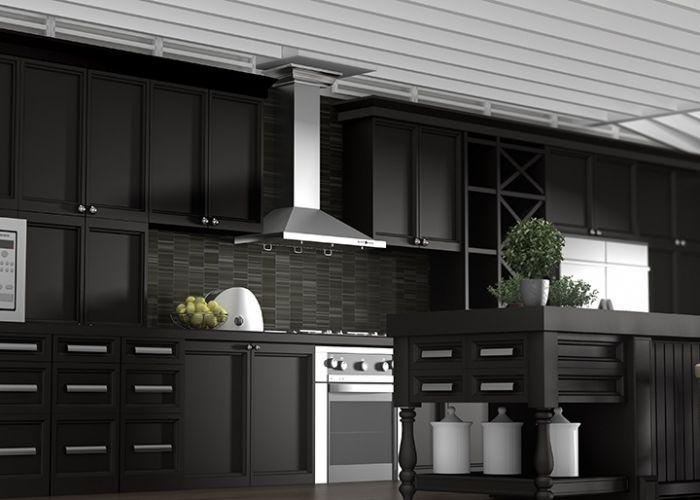

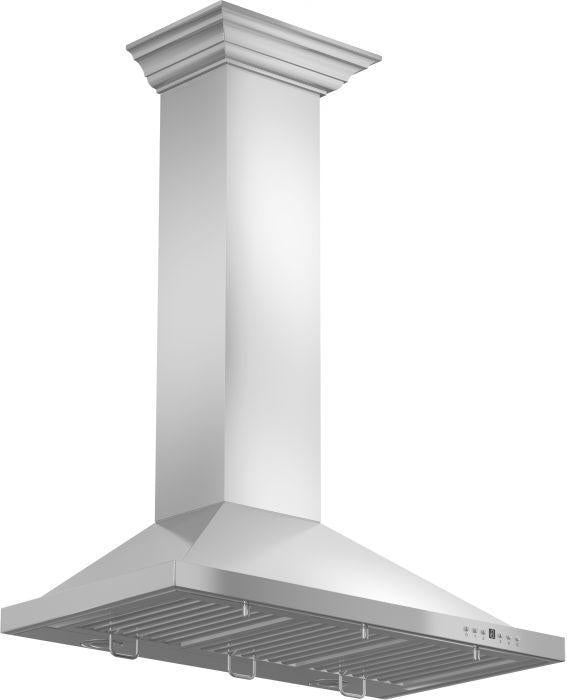

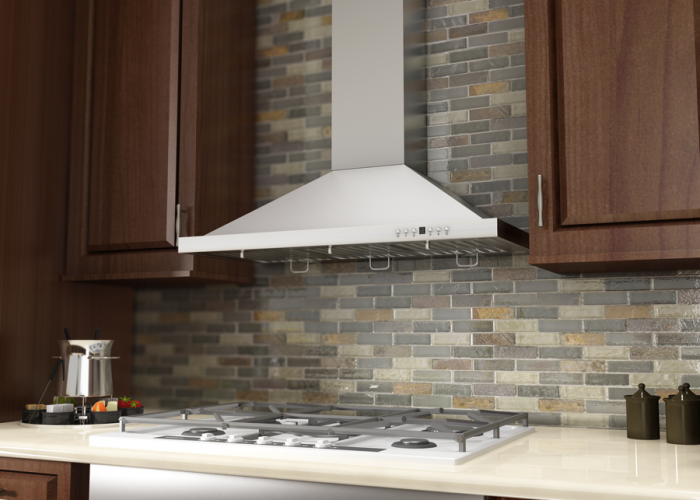

The ZLINE KBCRN-30 Wall Mount Range Hood is a 30-inch stainless steel ventilation solution designed for efficient kitchen airflow and modern styling. Constructed from durable 430-grade stainless steel, this range hood features a powerful 4-speed motor delivering up to 400 CFM for effective smoke, grease, and odor removal.

This model includes crown molding for an enhanced built-in appearance and supports both ducted and ductless (recirculating) installation with optional charcoal filters (sold separately). The included telescoping chimney system allows flexible installation for standard ceiling heights.

Equipped with dishwasher-safe stainless steel baffle filters and integrated LED lighting, this range hood offers easy maintenance and improved visibility while cooking. The intuitive control panel with LCD display and auto shut-off timer ensures convenient operation.

Key Features:

• 30-inch wall mount range hood in stainless steel

• Convertible venting (ducted or ductless with optional CF1 filters)

• High-performance 4-speed motor with up to 400 CFM airflow

• Dishwasher-safe stainless steel baffle filters

• Built-in LED lighting for enhanced cooktop visibility

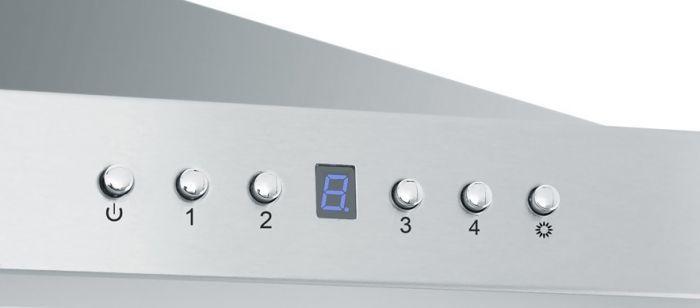

• LCD control panel with timer and delayed auto shut-off

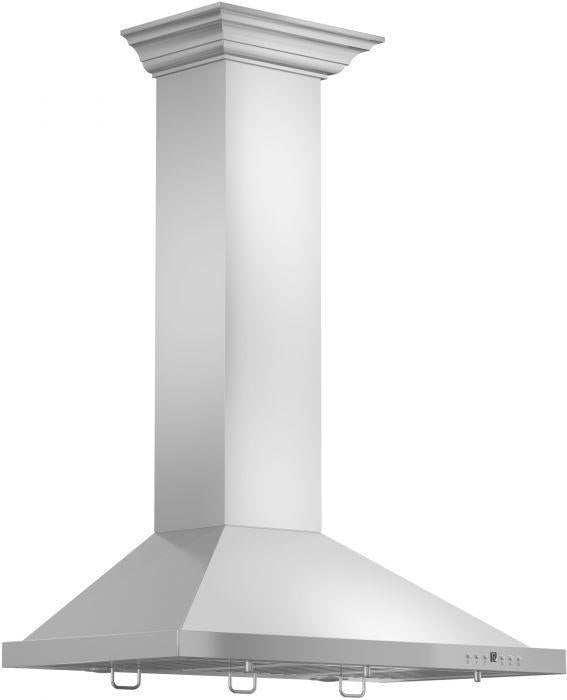

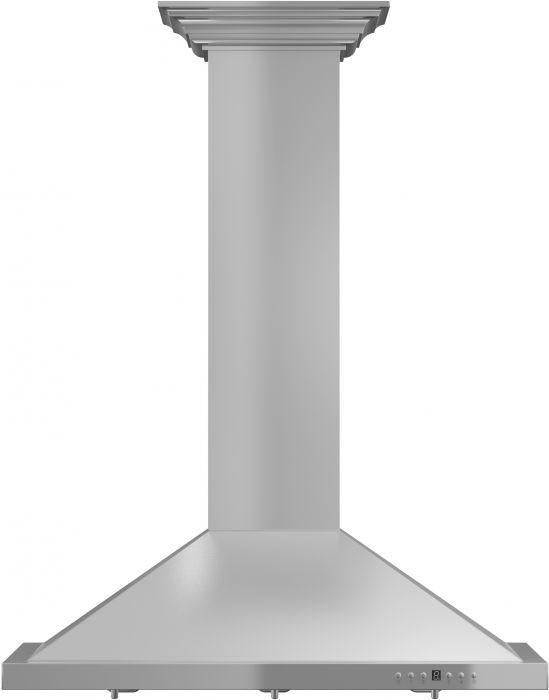

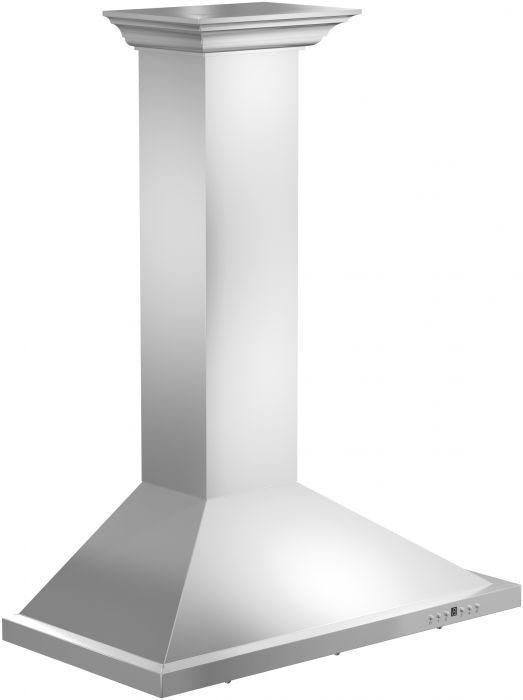

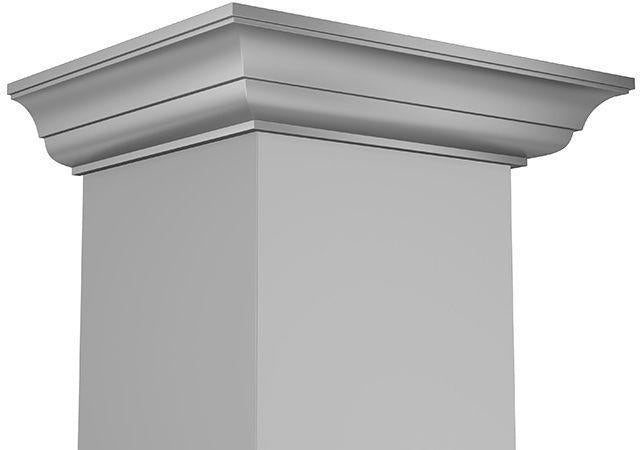

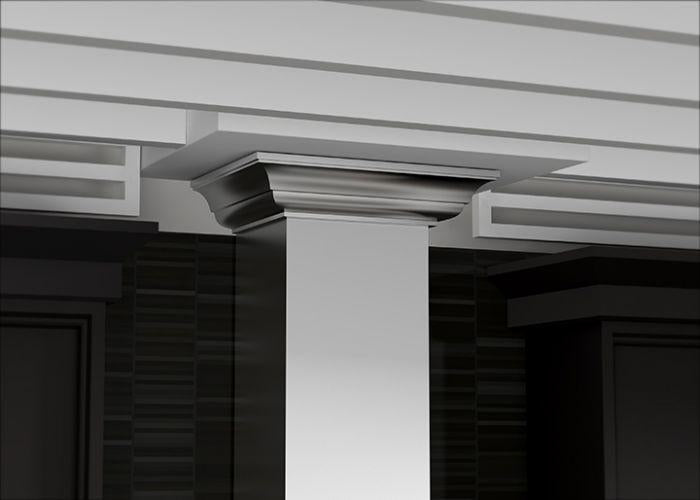

• Includes crown molding (CM6-KB/KL2/KL3)

• Telescoping chimney fits standard 8 ft to 9 ft ceilings

• Compatible with extension kits for taller or shorter ceilings

• ETL certified for safety and performance

Technical Specifications

• Brand: ZLINE Kitchen and Bath

• Model: KBCRN-30

• Mount Type: Wall Mount

• Material: 430 Stainless Steel

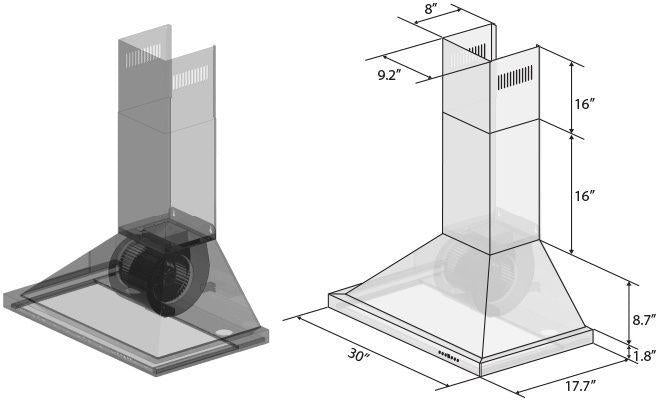

• Dimensions: 30" W x 17.7" D x 10.5" H

• Chimney Dimensions: 9.2" W x 8" D x 16" H (x2, telescoping)

• Airflow: 120 / 240 / 320 / 400 CFM

• Noise Level: 20 / 29 / 34 / 41 dB

• Lighting: 2 LED Lights (3W each)

• Control Type: LCD Panel with Timer

• Voltage: 110V / 60Hz

• Venting Size: 6" outlet

• Speeds: 4-speed fan control

• Filters: Stainless steel baffle filters (dishwasher-safe)

• Warranty: 3-Year Parts Warranty

• Certification: ETL Listed

Installation & Compatibility

• Ductless operation requires CF1 charcoal filters (sold separately)

• Short kit required for ceilings under 8 ft

• Extension kits available for ceilings up to 12 ft

• Includes two telescoping chimney pieces

Additional Information

• Suitable for indoor use only

• Available in additional sizes: 36", 42", and 48"
