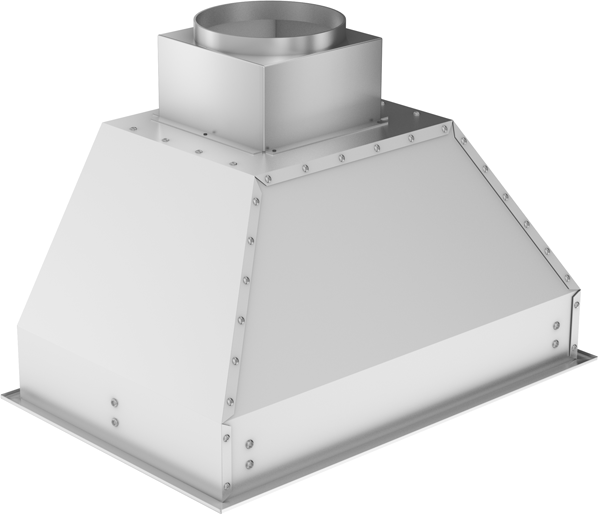

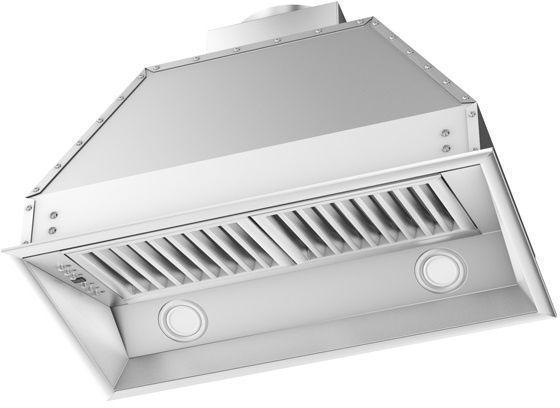

The ZLINE 698-28 28-inch wall mount range hood insert is designed to deliver efficient ventilation performance with a clean, built-in look. Constructed from durable 430-grade stainless steel, this range hood insert is engineered for long-lasting use while complementing a variety of kitchen designs.

Equipped with a 4-speed motor, this unit provides adjustable airflow up to 400 CFM to effectively remove smoke, grease, and cooking odors. Integrated LED lighting enhances visibility over your cooktop, while dishwasher-safe stainless steel baffle filters simplify maintenance.

This range hood insert is ETL certified and includes essential components for standard installation.

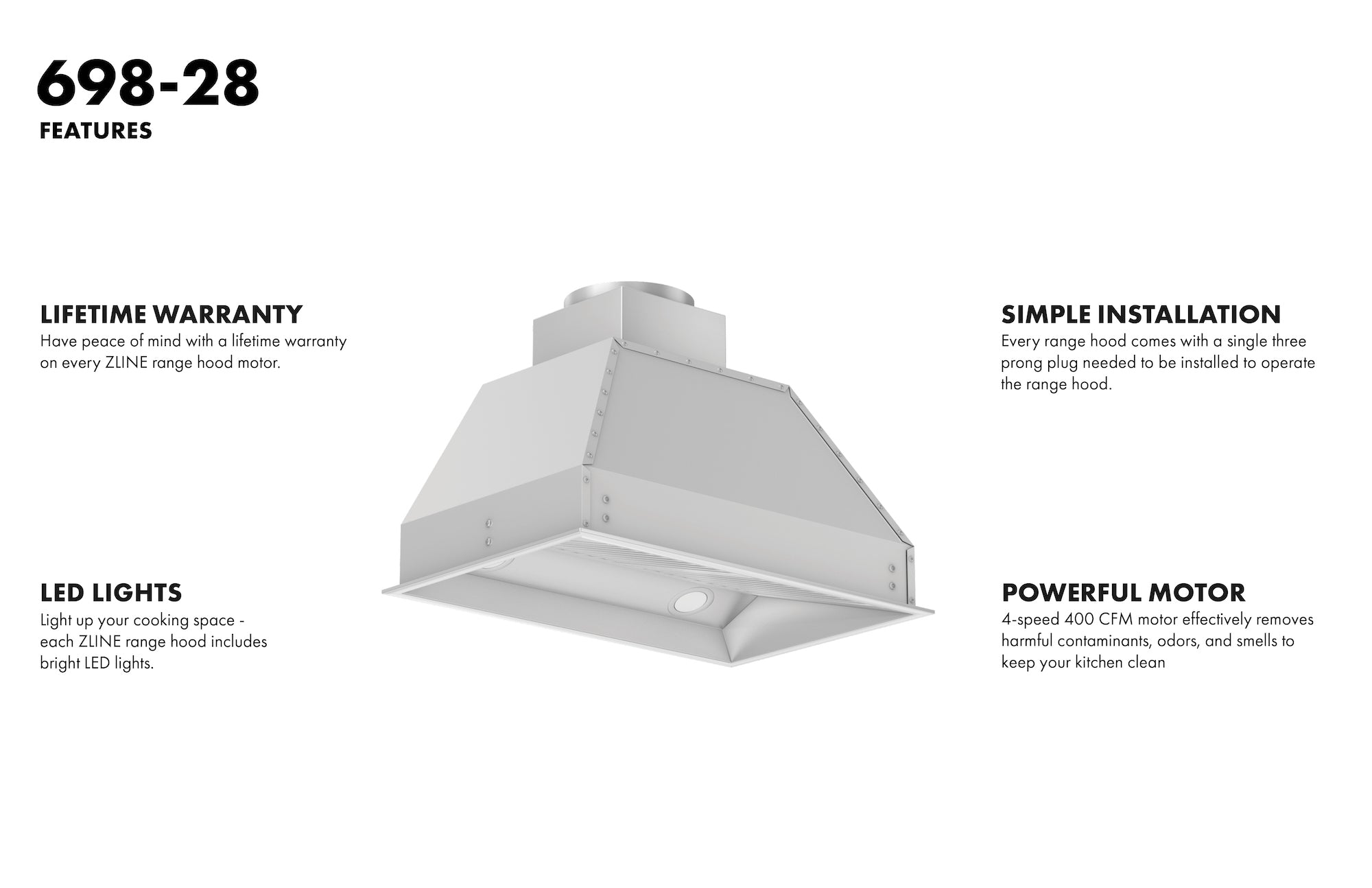

Key Features:

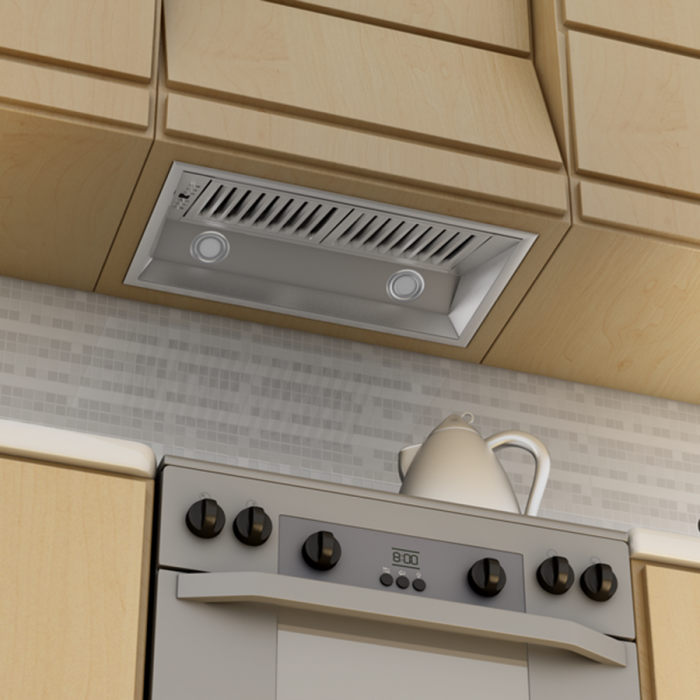

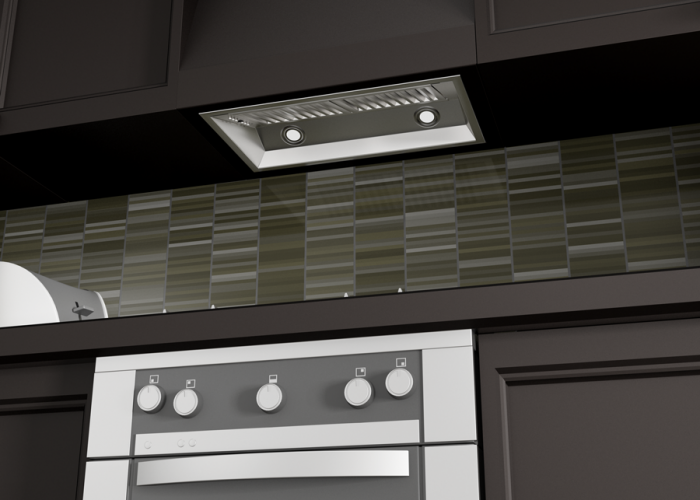

• 28-Inch Built-In Design: Ideal for custom cabinetry or wall-mounted hood installations
• 400 CFM Ventilation Power: Efficiently removes smoke, grease, and odors
• 4-Speed Fan Control: Adjustable airflow levels for different cooking needs
• Durable Stainless Steel Construction: Made from 430-grade stainless steel for long-term durability
• Dishwasher-Safe Baffle Filters: Easy to clean and maintain
• LED Lighting: Dual directional LED lights improve cooking visibility
• Push Button Controls with Timer: Includes LCD panel and 3-minute auto shutoff function
• Quiet Operation: Operates as low as 30 dB for minimal noise disruption
• Ducted Vent Installation: Designed for external venting only (non-ductless)
• ETL Certified: Meets safety and performance standards

Specifications

• Brand: ZLINE Kitchen and Bath
• Model: 698-28
• Dimensions: 28" W x 18" D x 14.2" H
• Airflow: Up to 400 CFM
• Fan Speeds: 4-Speed (280 / 460 / 670 / 400 CFM)
• Noise Level: 30–55 dB
• Lighting: 2 x 3W LED Lights
• Voltage: 110V / 60Hz
• Vent Size: 6-inch outlet (includes transition piece with backdraft damper)
• Control Type: LCD Panel with Timer and Delayed Shutoff
• Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
• Material: 430 Stainless Steel
• Certification: ETL Listed
• Warranty: 3-Year Parts Warranty

Additional Information

• Designed for ducted installation only (no recirculation option)
• Suitable for indoor residential use
• Also available in multiple sizes for different kitchen configurations
