Hauslane Convertible Insert Built-in Range Hood in Stainless Steel, 17.87-Inch Deep (IN-R230)
Hauslane Convertible Insert Built-in Range Hood in Stainless Steel, 17.87-Inch Deep (IN-R230)
Cutting-Edge Performance
The IN-R230 delivers 390 CFM of laboratory-tested airflow with motor technology designed for professional-grade performance. It handles any cooking style, from delicate sauces to high-heat searing.

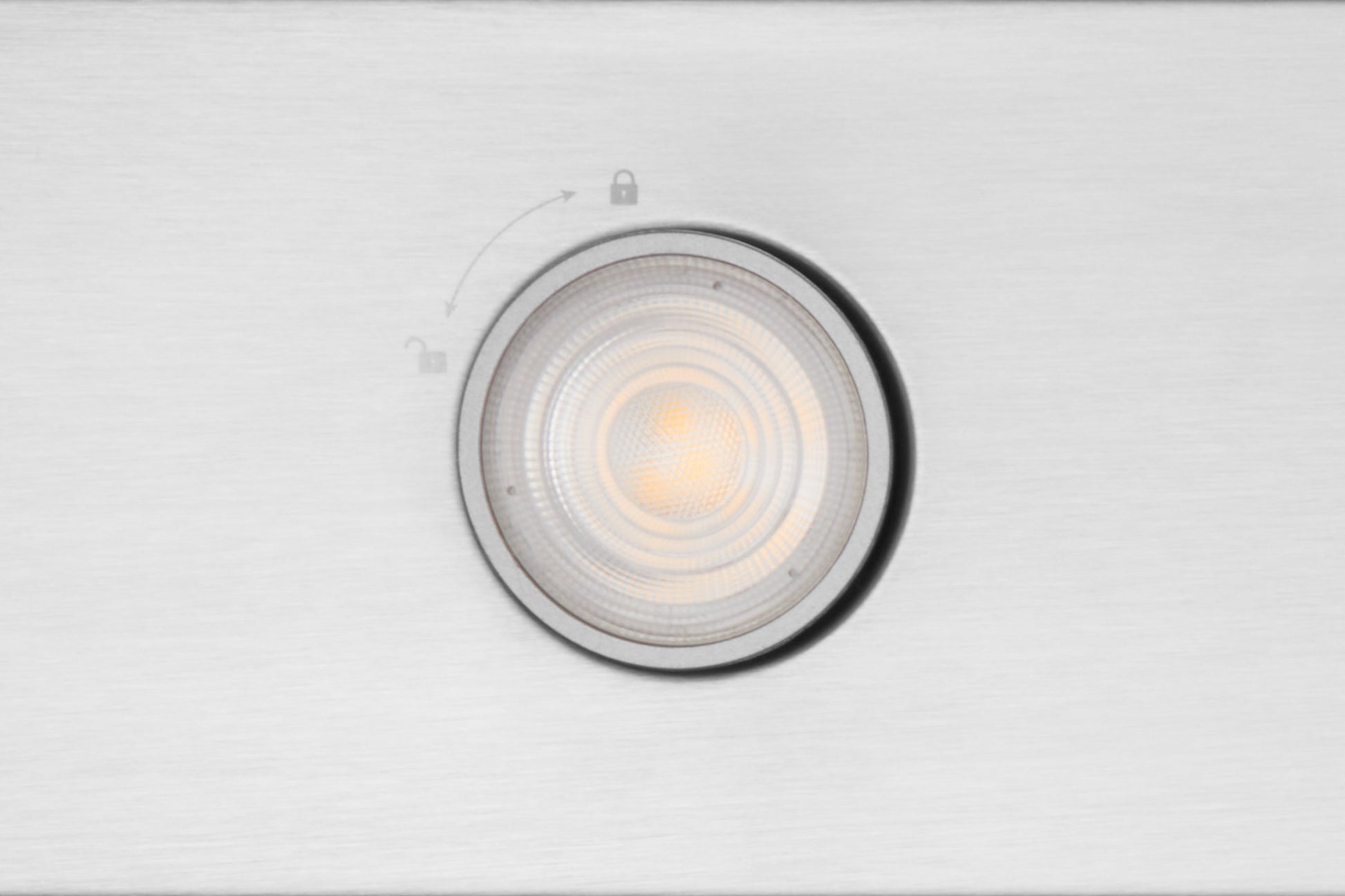

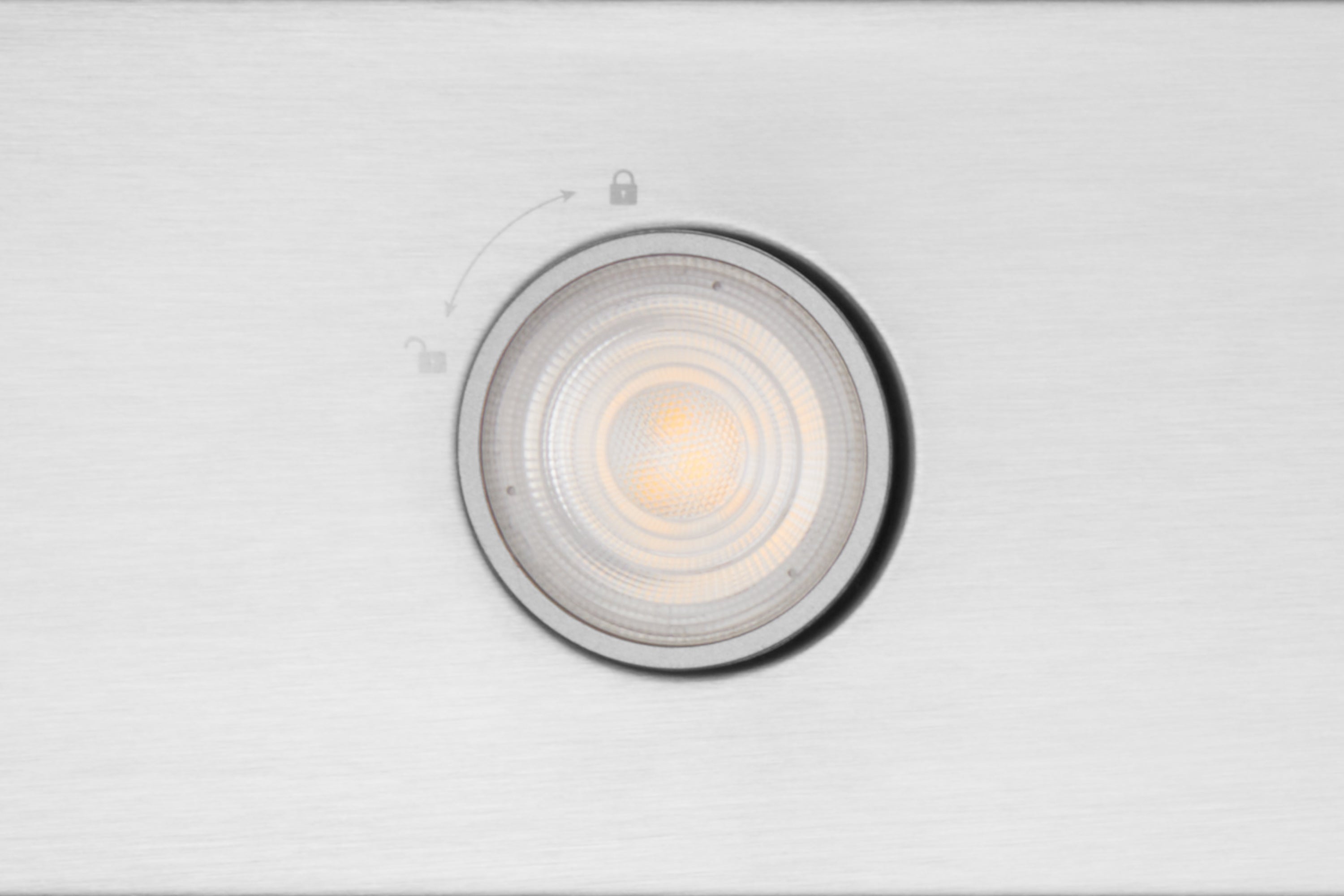

Replaceable LED Lighting
Two bright GU10 LED bulbs illuminate your cooktop while creating the perfect ambiance. And when they eventually burn out? You can easily replace them.
Dishwasher-Safe Convenience

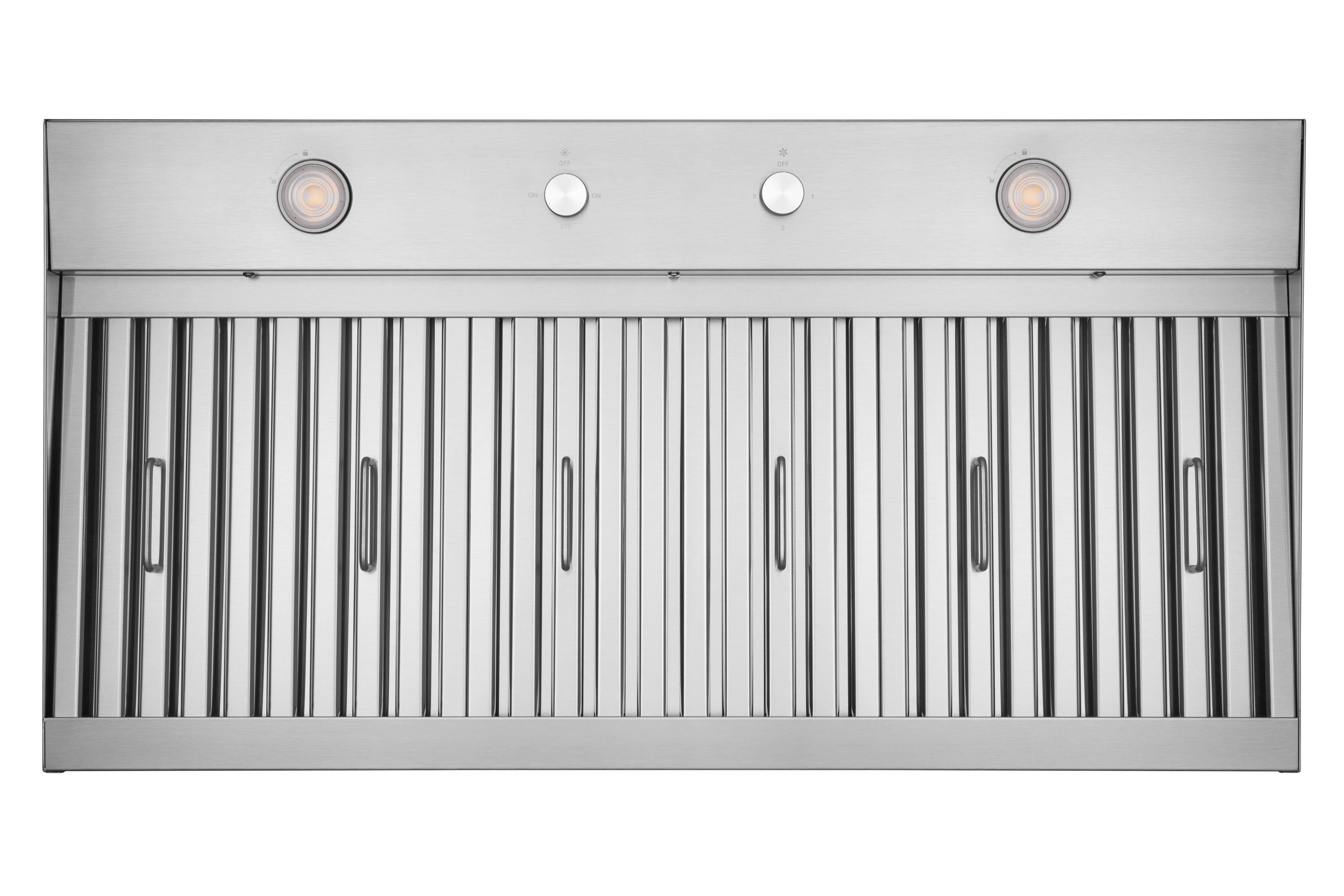

Cleanup should be a quick and easy part of your routine, not a chore. The stainless steel baffle filters slide out easily for dishwasher cleaning.
Flexible Installation Options
The IN-R230 adapts to your kitchen, not the other way around. Install it ducted for maximum efficiency or convert to ductless operation with separately sold CFI010 charcoal filters.
A Healthier Kitchen Environment
Studies show cooking fumes contain pollutants linked to serious health issues. The IN-R230's powerful ventilation system removes these harmful particles from your kitchen before they become a problem.
Trusted Engineering
Decades of expertise in professional-grade kitchen ventilation mean we understand what works in real kitchens. All our range hoods and inserts are designed to give you the best possible cooking experience.

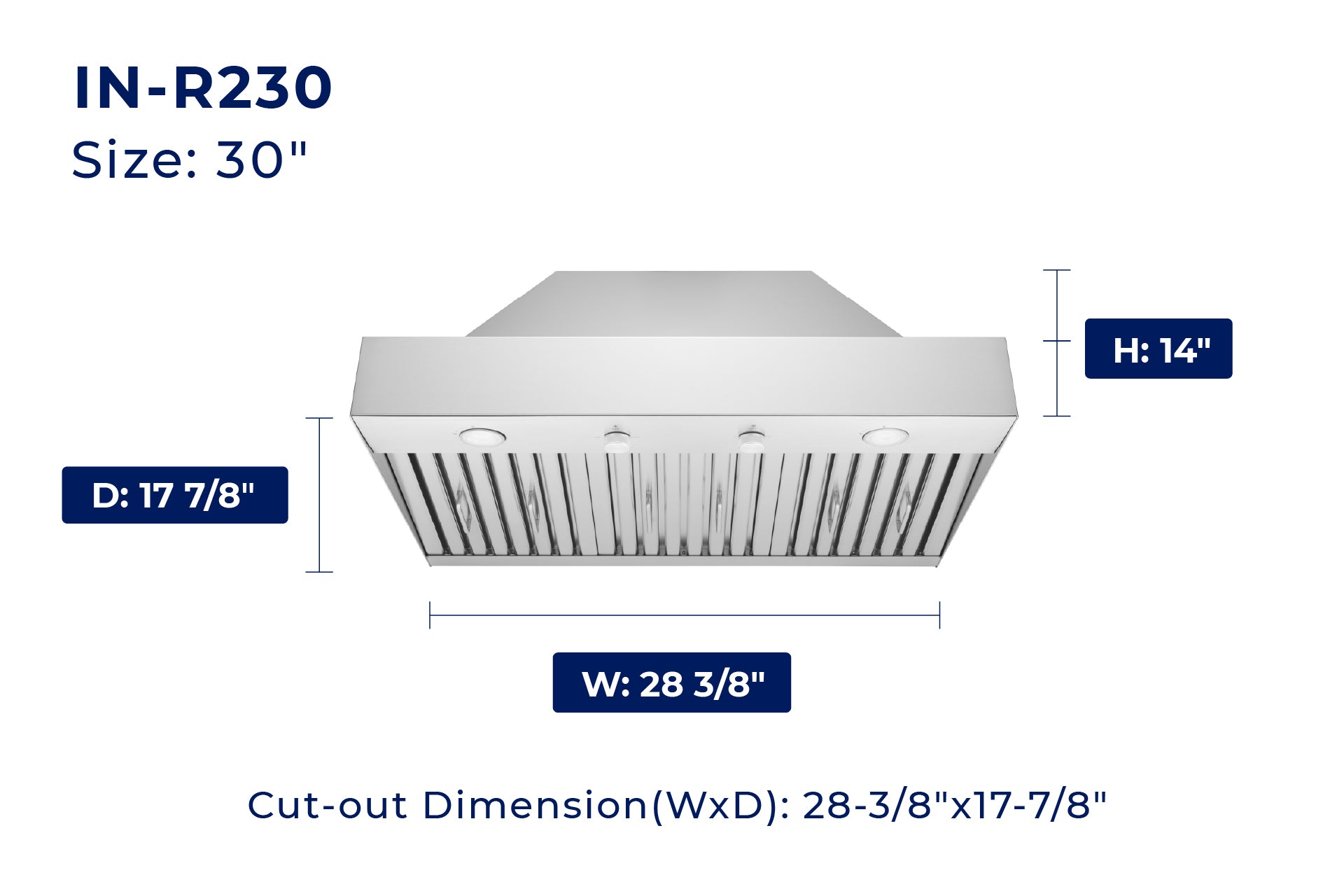

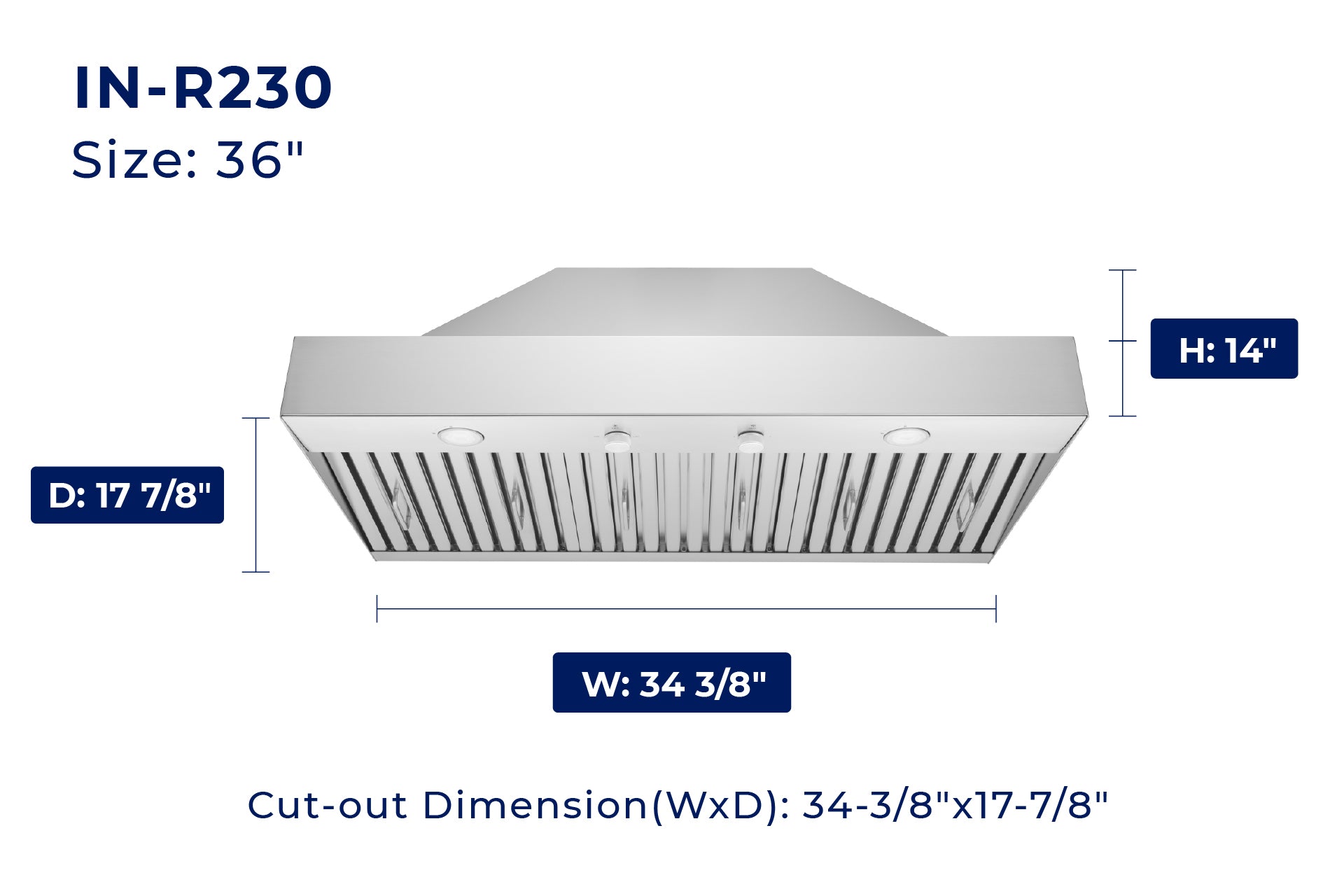

| Dimensions (WxDxH) | 30": 28-3/8" x 17-7/8" x 14" 36": 34-3/8" x 17-7/8" x 14" |
| Size | 30" I 36" |
| Style | Built-in / Insert |
| Recirculating | Yes (Charcoal Filters Needed) |
| Cleaning Function | No |
| Noise Level | 1.5 to 6.0 Sones |
| Light Color Temp. | Warm / 3000 Kelvin |
| Lumens | 200 |
| Light Bulb | 3W LED (GU10 Base) |
| Light Intensity | 1 Level |
| Delay Function | No |

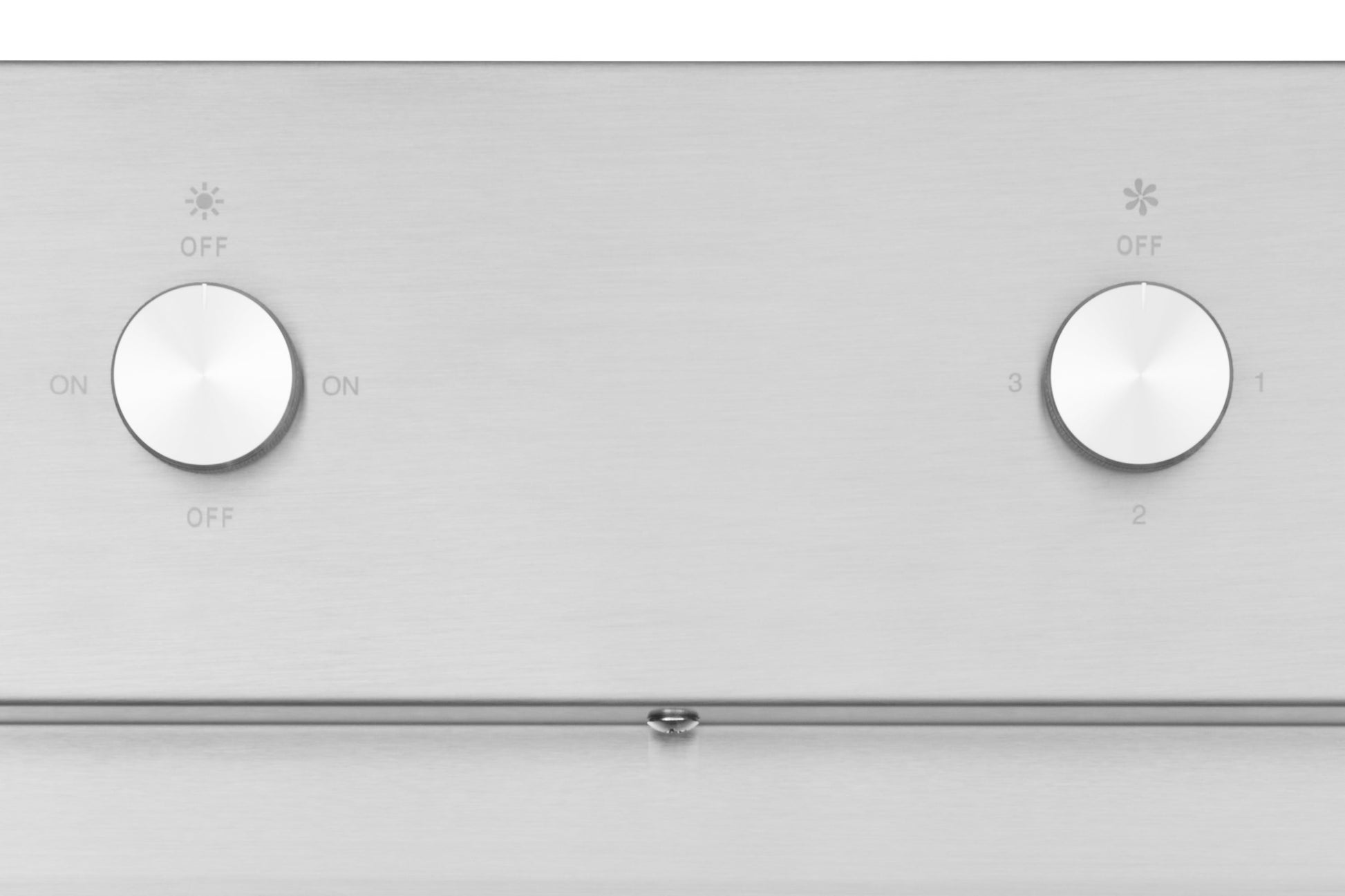

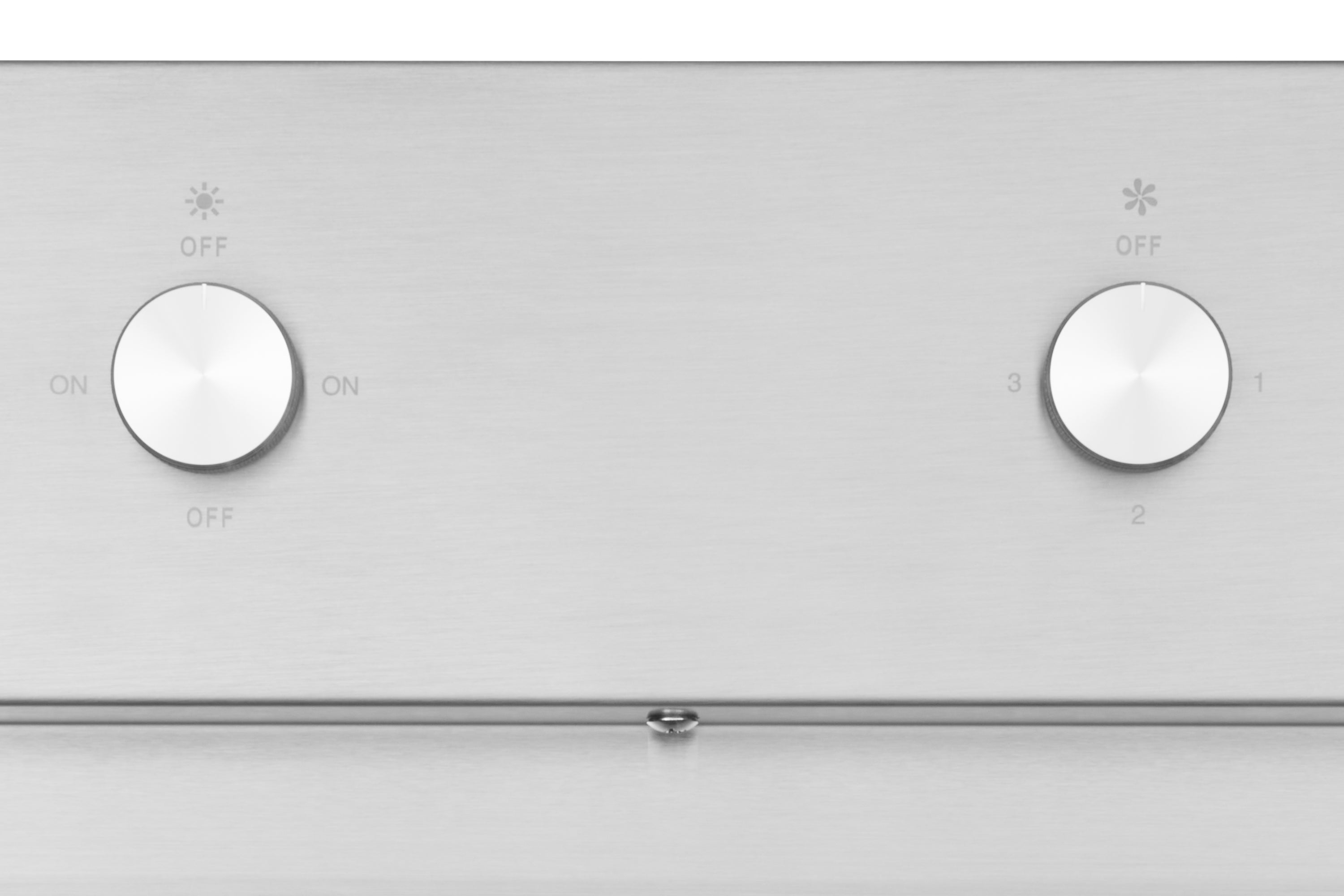

| Control | Mechanical Knob |
| Speed Selections | 3 Levels |
| Cooking Style | Heavy-Duty |
| Equivalent Airflow (CFM) | N/A |
| Laboratory Airflow (CFM) | 390 |
| Top Venting | 6" Round |
| Rear Venting | No |
| Convertible | Yes |
| Motor | Single |
| Wattage | 120W |
| Voltage | 120v |
| Connection | Plug-in |
| Amperage | 1.0 Amp |
| Gross Weight (Lbs.) | 30": 41 | 36": 46 |
| Net Weight (Lbs.) | 30": 34 | 36": 38 |
